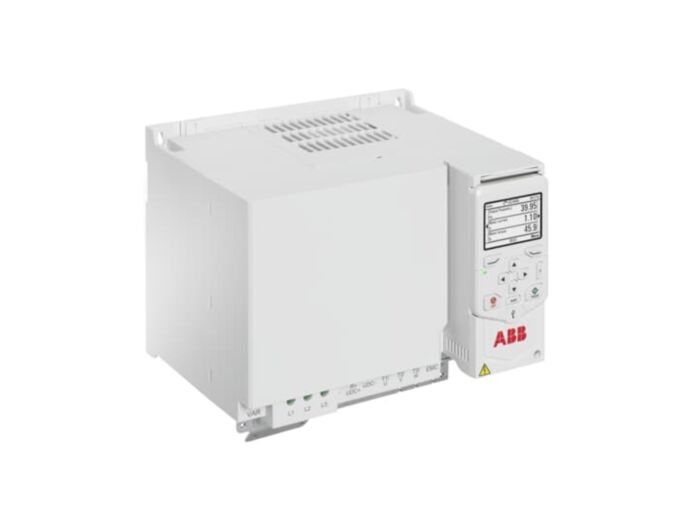

ACH480-04-039A-4 ABB 18.5kW Three Phase ABB ACH480 Variable Speed Drive
MPN: ACH480-04-039A-4
Alt. SKU: 3AXD50000275731
Special Price
£2,031.90
£1,693.25
Regular Price
£3,126.00
Why Choose the ACH480-04-039A-4 [3AXD50000275731]
The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Technical Specification
- Function: Cabinet-optimised HVAC drive for fans, pumps, compressors, and air-handling units.
- Input Voltage: 380 - 480 V, 3-phase.
- Output Current (Normal Use): 38 A.
- Output Power (Normal Use): 18.5 kW.
- Degree of Protection: IP20 (open type enclosure).
- Communication Protocols: BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control Interfaces: 2 analogue inputs, 2 analogue outputs, 6 digital inputs, 3 digital outputs, USB port included.
- Mounting Type: Module for cabinet integration.
- Maximum Operating Temperature: 50 °C.
- Sound Level: 69 dB(A).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACH480 drive?
The ACH480 drive operates within an input voltage range of 380 - 480 V, 3-phase.
What types of equipment can the ACH480 drive control?
The ACH480 drive is designed to control fans, pumps, compressors, and air-handling units.
What is the maximum output current of the ACH480 drive?
The maximum output current for normal use is 38 A.
What communication protocols are supported by the ACH480 drive?
The ACH480 supports BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP.
What is the degree of protection for the ACH480 drive?
The ACH480 has a degree of protection rated at IP20 (open type enclosure).
What is the maximum operating temperature for the ACH480 drive?
The maximum operating temperature is 50 °C.
Is the ACH480 drive suitable for panel builders and OEMs?
Yes, the ACH480 is particularly well-suited for panel builders and OEMs.
| Manufacturer Part Number | ACH480-04-039A-4 |
|---|---|
| Barcode | 6438177541837 |
| Packed Quantity | 1 |
| Height | 240mm |
| Width | 262mm |
| Depth | 213mm |
| HS Code | 85044086 |
| Amperage | 38A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 18.5kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 599Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH480 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000275731 |
