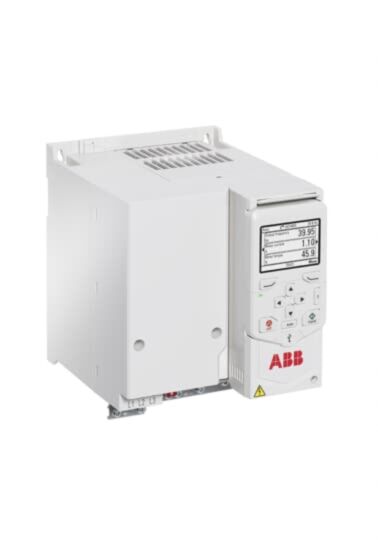

ACH480-04-018A-4 ABB 7.5kW Three Phase ABB ACH480 Variable Speed Drive

Why Choose the ABB ACH480-04-018A-4 HVAC Drive?

The ABB 3AXD50000275502, also known as the ACH480-04-018A-4, is a purpose-built HVAC AC variable frequency drive (VFD) designed to optimise energy efficiency and control in heating, ventilation and air conditioning systems. As part of the ABB ACH480 HVAC drive series, it offers dedicated functionality for building services and environmental control applications.

This drive is engineered specifically for HVAC equipment such as fans, pumps and compressors, with built-in features that simplify installation, commissioning and operation. Its intuitive control panel and HVAC-specific menus make it easy to configure, while advanced control ensures smooth and efficient system performance.

With a rated output power of 7.5 kW, 17 A output current and a three-phase 380–480 V AC supply, the ACH480-04-018A-4 is ideal for air handling units, ventilation systems and water circulation applications in commercial buildings and industrial facilities. :contentReference[oaicite:0]{index=0}

Key Advantages

• Dedicated HVAC drive for building automation systems.
• 7.5 kW output power for fans, pumps and compressors.
• Pre-configured HVAC functionality reduces setup time.
• Improves energy efficiency and lowers operating costs.
• Intuitive control panel with guided commissioning.
• Reliable operation in both standard and critical HVAC environments.

Key Features

• ABB ACH480 HVAC drive platform.
• 7.5 kW rated output power.
• 17 A nominal output current.
• Three-phase 380–480 V AC input supply.
• HVAC-specific control menus and assistants.
• Integrated energy optimisation features.
• Optional Bluetooth connectivity for remote commissioning.
• Compact cabinet-optimised design.

Technical Specifications

• Manufacturer: ABB
• Series: ACH480 HVAC Drives
• Model: ACH480-04-018A-4
• Product ID: 3AXD50000275502
• Product type: HVAC AC variable frequency drive
• Rated output power: 7.5 kW
• Rated output current: 17 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 47.5–63 Hz
• Protection rating: IP20
• Mounting type: Cabinet / panel mounting
• Dimensions (H × W × D): approx. 220 × 172 × 208 mm
• Weight: approx. 2.5 kg

Optimised Control for HVAC Systems

The ACH480 drive is specifically designed to handle HVAC applications efficiently, offering built-in features tailored to fans, pumps and compressors. These capabilities ensure stable airflow, pressure control and energy-efficient operation in both normal and mission-critical environments. :contentReference[oaicite:1]{index=1}

By adjusting motor speed according to demand, the drive reduces energy consumption and mechanical wear, making it an ideal solution for modern building management systems. :contentReference[oaicite:2]{index=2}

Typical Applications

• Air handling units (AHUs).
• HVAC fans and ventilation systems.
• Water circulation pumps.
• Cooling towers and chillers.
• Commercial building automation systems.
• Industrial HVAC installations.

Trusted by Building Automation Engineers

ABB ACH480 drives are trusted worldwide for delivering efficient, reliable and easy-to-use motor control solutions in HVAC and building automation systems.
