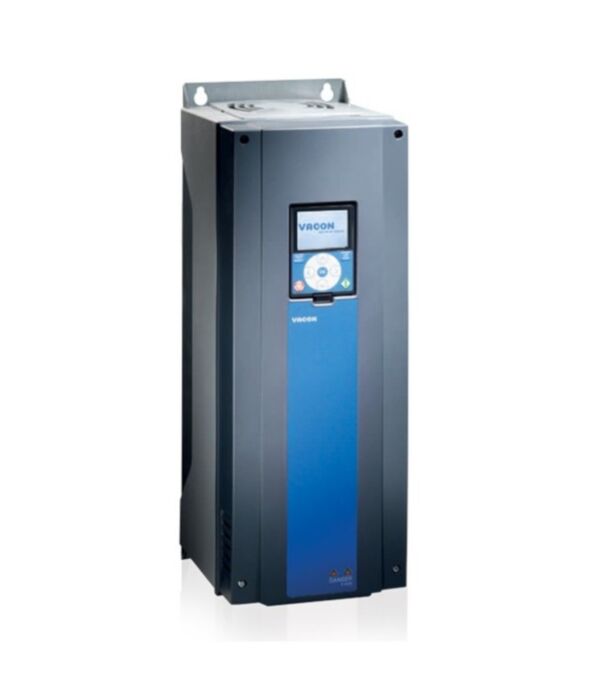

VACON 100 VACON0100-3L-0038-5 15Kw (CT) / 18.5KW (VT) 31Amp (CT) / 38Amp (VT) 3 PHASE IN/OUT IP54

Why Choose the Danfoss VACON0100-3L-0038-5+IP54 HVAC Drive?

The Danfoss VACON0100-3L-0038-5+IP54 is a powerful and highly reliable AC variable frequency drive (VFD) designed for demanding HVAC and industrial flow control applications, including pumps, fans and air handling systems. As part of the advanced Danfoss VACON 100 FLOW series, it delivers precise motor control, energy efficiency and seamless integration into building automation and industrial environments.

Engineered for high-performance applications, this drive dynamically adjusts motor speed and torque to match system demand. This reduces energy consumption, improves process stability and extends equipment lifespan. Its IP54-rated enclosure enables installation in dusty or damp environments without requiring a dedicated control cabinet.

With a rated output power of approximately 18.5 kW and a three-phase 380–500 V AC supply, the VACON0100-3L-0038-5+IP54 is ideal for medium to high-capacity HVAC and industrial systems requiring efficient and dependable motor control.

Key Advantages

• Designed for HVAC systems including pumps and fans.
• 18.5 kW motor power rating for demanding applications.
• IP54 enclosure for installation in harsh environments.
• Three-phase 380–500 V AC input for industrial compatibility.
• 38 A output current for high-load operation.
• Energy-efficient motor control reduces operating costs.

Key Features

• Danfoss VACON 100 FLOW series drive.
• 18.5 kW rated output power (low overload).
• 38 A nominal output current.
• Three-phase 380–500 V AC input supply.
• IP54 / NEMA 12 enclosure for wall or machine mounting.
• Integrated graphical keypad (MK01) for configuration and diagnostics.
• Supports Modbus, BACnet, N2 and Ethernet-based fieldbus.
• Advanced control features including PID control and multipump functionality.

Technical Specifications

• Manufacturer: Danfoss
• Series: VACON 100 FLOW
• Model: VACON0100-3L-0038-5+IP54
• Product type: AC variable frequency drive
• Rated output power: 18.5 kW (NO), approx. 15 kW (HO)
• Rated output current: 38 A (NO), approx. 31 A (HO)
• Input voltage: 380–500 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Output frequency range: 0–320 Hz
• Protection rating: IP54 / NEMA 12
• Mounting type: Wall / external mounting
• Frame size: MR06
• Dimensions (W × H × D): approx. 195 × 557 × 229 mm
• Weight: approx. 20 kg

High-Efficiency Motor Control for HVAC and Industrial Systems

The VACON 100 drive regulates motor speed by adjusting output voltage and frequency, enabling precise control of airflow and fluid movement. This improves energy efficiency, reduces operational costs and ensures stable performance across HVAC and industrial processes.

VACON 100 FLOW drives include dedicated features for pump and fan applications, such as advanced PID control and multipump functionality, helping optimise system performance and reduce energy consumption.

Typical Applications

• HVAC systems and air handling units.
• Industrial pump and booster systems.
• Ventilation and extraction systems.
• Water and wastewater treatment plants.
• Building automation and energy management systems.
• Medium to high-capacity industrial machinery.

Trusted by Engineers Worldwide

Danfoss VACON drives are widely trusted for delivering efficient, scalable and reliable motor control solutions across HVAC and industrial automation sectors.
