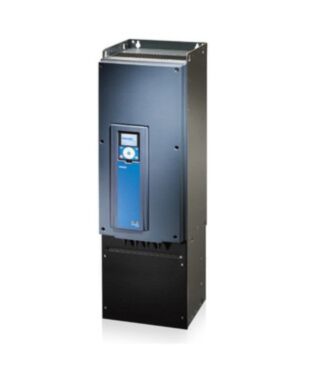

VACON 100 FLOW VACON0100-3L-0105-5-FLOW+IP54 55Kw/105Amp 3 PHASE IN/OUT IP54

Why Choose the Vacon VACON0100-3L-0105-5-FLOW+IP54 Drive?

The Vacon VACON0100-3L-0105-5-FLOW+IP54 is a powerful and energy-efficient AC variable frequency drive engineered specifically for pump, fan and flow-control applications. As part of the advanced VACON 100 FLOW drive series, it delivers precise motor control, reduced energy consumption and enhanced system performance in commercial and industrial environments.

Designed for demanding HVAC and process applications, this drive incorporates dedicated flow-control functionality, integrated fieldbus communications and intelligent motor control algorithms. The VACON 100 FLOW platform helps operators optimise system efficiency while simplifying commissioning and maintenance.

With a rated output power of 55 kW, a continuous output current of 105 A and a three-phase 380–500 V AC supply, the VACON0100-3L-0105-5-FLOW+IP54 is ideally suited to large pumps, fans, compressors and building automation systems. Its IP54 / NEMA 12 enclosure allows installation in more challenging environments without requiring a separate control cabinet.

Key Advantages

• Dedicated VACON 100 FLOW drive optimised for pump and fan control.
• 55 kW motor power rating for larger industrial applications.
• 105 A continuous current rating for demanding motor loads.
• Three-phase 380–500 V AC input compatible with industrial power systems.
• IP54 / NEMA 12 enclosure for enhanced environmental protection.
• Integrated communication protocols for building and industrial automation.
• Energy-saving features designed to reduce operating costs.

Key Features

• VACON 100 FLOW series.
• 55 kW low-overload motor power rating.
• 105 A continuous output current.
• Three-phase 380–500 V AC supply.
• IP54 / NEMA 12 protection rating.
• Graphical Keypad MK01 for commissioning and monitoring.
• Integrated EMC Class C2 filtering.
• Built-in Modbus, BACnet and N2 communication support.
• Three relay outputs via F3 option board.
• Integrated DC choke and advanced motor control functions.

Technical Specifications

• Manufacturer: Vacon / Danfoss
• Series: VACON 100 FLOW
• Model: VACON0100-3L-0105-5-FLOW+IP54
• Product type: AC variable frequency drive
• Rated motor power: 55 kW
• Continuous output current: 105 A
• Input voltage: 380–500 V AC
• Input phases: 3-phase
• Output frequency: 0–320 Hz
• Protection rating: IP54 / NEMA 12
• EMC category: C2 Commercial & Industrial Environment
• Control panel: Graphical Keypad MK01
• Communication protocols: Modbus, N2, BACnet
• Frame size: MR07 / Frame 07
• Dimensions (W × H × D): approx. 237 × 660 × 259 mm
• Weight: approx. 38 kg

Reliable Motor Control for Flow Applications

Variable frequency drives such as the VACON 100 FLOW precisely regulate motor speed by adjusting output voltage and frequency. This enables pumps and fans to operate only at the required output level, reducing energy consumption and extending equipment life.

The VACON 100 FLOW range is specifically designed for building services, water management and industrial flow-control systems. Its advanced software package, communication options and robust construction provide dependable operation across a wide range of demanding applications.

Typical Applications

• HVAC fan and air handling systems.
• Industrial and commercial pumping stations.
• Water and wastewater treatment facilities.
• Building management and automation systems.
• Pressure boosting and circulation pumps.
• Process cooling and industrial ventilation systems.

Trusted by HVAC and Process Control Engineers Worldwide

VACON 100 FLOW drives are widely used in pumping, ventilation and building automation systems to deliver efficient motor control, reduced energy consumption and reliable long-term operation.
