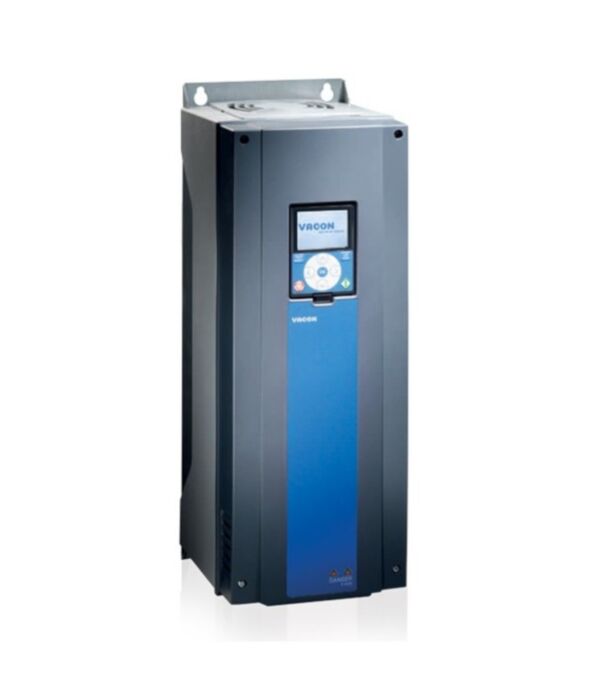

VACON 100 FLOW VACON0100-3L-0038-5-FLOW+IP54 18.5Kw/38Amp 3 PHASE IN/OUT IP54
MPN: 135N4453
Alt. SKU: 70-AB3L00385W06B520BM2H-00048548
Special Price
£2,303.22
£1,919.35
Regular Price
£4,005.60
Why Choose the Danfoss VACON0100-3L-0038-5-FLOW+IP54 HVAC Drive?
The Danfoss VACON0100-3L-0038-5-FLOW+IP54 is a powerful and efficient AC variable frequency drive (VFD) designed for demanding HVAC applications, including pumps, fans and air handling systems. As part of the advanced Danfoss VACON 100 FLOW series, it delivers precise motor control, energy savings and seamless integration into modern building automation systems.
Engineered for high-performance environments, this drive optimises motor operation by adjusting speed and torque to match system demand. The integrated IP54 enclosure allows installation in exposed or industrial environments without the need for additional protective cabinets, simplifying installation and reducing costs.
With a rated output power of approximately 18.5 kW and a three-phase 380–500 V AC supply, the VACON0100-3L-0038-5-FLOW+IP54 is ideal for heavy-duty HVAC systems such as large ventilation units, pumps and industrial fans.
Key Advantages
- Purpose-built HVAC drive for pumps, fans and air handling systems.
- 18.5 kW motor power rating for high-demand applications.
- Three-phase 380–500 V AC input for industrial compatibility.
- IP54 enclosure enables installation without additional housing.
- Advanced energy optimisation reduces operational costs.
- Integrated HVAC functionality simplifies commissioning.
Key Features
- Danfoss VACON 100 FLOW series HVAC drive.
- 18.5 kW rated output power.
- 38 A nominal output current.
- Three-phase 380–500 V AC input supply.
- IP54 protection rating for harsh environments.
- Built-in HVAC macros for pumps and fan control.
- Integrated PID controller for process optimisation.
- Supports fieldbus communication and automation systems.
Technical Specifications
- Manufacturer: Danfoss
- Series: VACON 100 FLOW
- Model: VACON0100-3L-0038-5-FLOW+IP54
- Product type: AC variable frequency drive (HVAC)
- Rated output power: 18.5 kW
- Rated output current: 38 A
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP54
- Mounting type: Wall mounted
- Control method: V/Hz and vector control
- Integrated functions: PID control, HVAC optimisation
- Operating temperature: approx. -10 to +50 °C
Optimised Motor Control for HVAC Systems
The VACON 100 FLOW drive regulates motor speed by adjusting voltage and frequency, enabling accurate control of airflow and fluid movement. This improves system efficiency, reduces mechanical wear and enhances overall process stability.
Its integrated HVAC features and flexible communication options make it an ideal solution for engineers and system integrators working with modern building services and industrial HVAC systems.
Typical Applications
- Large HVAC systems and air handling units.
- Industrial and commercial pump systems.
- Ventilation and extraction systems.
- Cooling towers and refrigeration systems.
- Building automation and energy management systems.
- High-capacity fan and blower applications.
Frequently Asked Questions
What is the Danfoss VACON0100-3L-0038-5-FLOW+IP54 used for?
This drive is designed for controlling motors in HVAC systems, particularly pumps and fans, improving efficiency and reliability.
What motor power is supported by this drive?
It supports motors with a rated output power of approximately 18.5 kW.
What supply voltage does the drive require?
The drive operates from a three-phase 380–500 V AC supply.
What does the IP54 rating provide?
The IP54 rating protects against dust ingress and water splashes, making it suitable for installation in exposed environments.
Can this drive be installed without a cabinet?
Yes, the IP54 version is designed for wall mounting and can often be installed without an additional enclosure.
Trusted by HVAC Engineers Worldwide
Danfoss VACON HVAC drives are trusted for delivering high-performance motor control, energy efficiency and long-term reliability in building services and industrial applications.
| Manufacturer Part Number | 135N4453 |
|---|---|
| Barcode | 5710108206512 |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP54 |
| KW Rating | 18.5kW |
| Output Phases | Three phase |
| VSD Range | Danfoss Vacon 100 Flow |
| Manufacturer | Vacon |
| Alternative Product SKU | 70-AB3L00385W06B520BM2H-00048548 |
