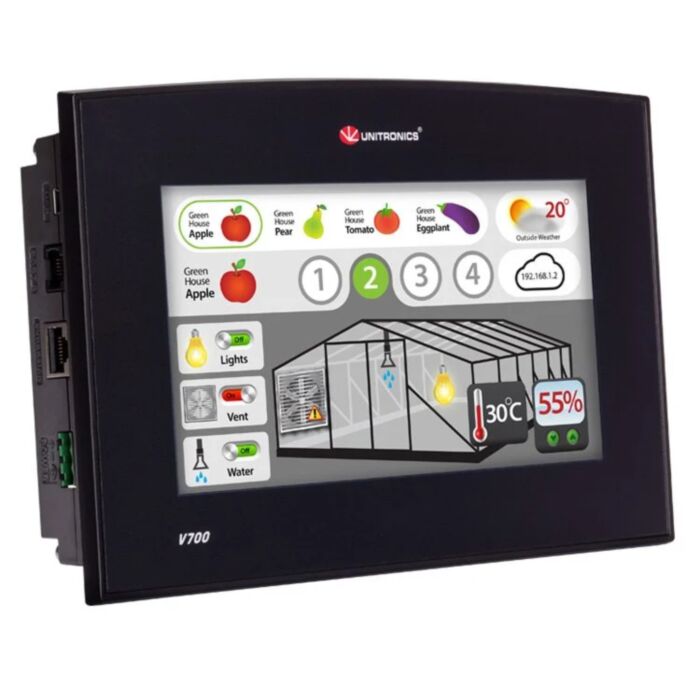

V700-T20BJ Unitronics V700-T20BJ COLOR OPLC,7",TOUCH
MPN: V700-T20BJ
Alt. SKU: V700T20BJ
Special Price
£776.47
£647.06
Regular Price
£913.50
Why Choose the Unitronics V700-T20BJ Vision700 PLC+HMI?
The Unitronics V700-T20BJ is a rugged, industrial-grade Vision700-series controller combining a full-colour 7″ resistive touchscreen HMI with powerful PLC logic. It supports snap-in I/O modules, fieldbus integration, and suitability for hazardous locations - perfect for mid-size automation systems requiring integrated control, rich visualisation, remote access, and on-board intelligence.
Technical Specifications
- Model: V700-T20BJ (Vision700, 7″ TFT colour touchscreen, 800×480 resolution)
- Power Supply: 12 or 24VDC (10.2 - 28.8V), max current ~630mA @12V or 320mA @24V DC
- Display: 7″ TFT resistive touchscreen, 65,536 colours, backlit white LED, brightness control via software
- Memory: Application logic 2MB; image library 60MB; fonts 1MB; dynamic data tables up to 120KB; micro-SD support for logging and program backup
- Communications: Built-in Ethernet, mini-USB device port, RS-232/RS-485 selectable via DIP switch; optional second port or CANbus via snap-in modules
- I/O Expansion: Supports snap-in modules up to 62 onboard I/Os; local expansion via EX-A2X (up to 8 modules ≈ 128 I/O); remote expansion via EX-RC1 (up to 60 adapters × 8 modules = 512 I/O points)
- Environment & Certifications: UL Ordinary Location and Hazardous Locations Class I Division2 compliant; panel-mounted IP65/66/NEMA4X; operating range 0 - 50 °C, RH 10 - 95% non-condensing; shock & vibration per IEC 60068-2-27/2-6
- Dimensions & Weight: 210×146.4×42.3mm; approx. 640g (22.6oz)
- Battery Backup: RTC and system variables retained for ~7 years via replaceable CR2450 battery (replaceable without opening the unit if powered off or in non-hazardous area)
Typical Applications
- Mid-scale industrial automation requiring integrated HMI and ladder logic
- Control systems with analogue, temperature (RTD/thermocouple), and weight processing needs
- Distributed I/O deployment using snap-in or remote expansion modules (up to ~1,000 I/O points)
- Scenarios requiring Modbus TCP/RTU, EtherNet/IP, BACnet, KNX, CANopen, SNMP, M-bus communication
- Hygienic or washdown environments thanks to IP65/66 enclosure rating
- Hazardous locations (UL ClassI Div2 A/B/C/D) compliant installations
Frequently Asked Questions
- Does the V700-T20BJ support hazardous locations?
- How many I/O points can be supported?
- What communication interfaces are onboard?
- What is the display size and resolution?
- How long does the battery backup last?
Yes - it is UL listed for Class I, Division 2, Groups A,B,C,D hazardous locations when mounted per guidelines.
Built-in I/O is expandable: up to 62 snap-in modules, plus local expansion via EX-A2X or remote EX-RC1 adapters. Total system expansion supports up to ~512 - 1,000 I/O points depending on module mix.
It includes Ethernet, RS-232/RS-485 via a combined port (selectable), USB device port; optional second port or CANbus via Uni-COM snap-in module. Only one port used at a time.
7″ resistive-touch TFT with 800×480 resolution and 16-bit colour display (~65k colours) with adjustable brightness.
Up to approximately 7 years at 25 °C for RTC and variable retention via internal CR2450 battery. Replaceable with power off or in non-hazardous area.
| Packed Quantity | 1 |
|---|---|
| Product Image | For Illustration Purposes Only |
| Manufacturer | Unitronics |
| Manufacturer Part Number | V700-T20BJ |
| Alternative Product SKU | V700T20BJ |
