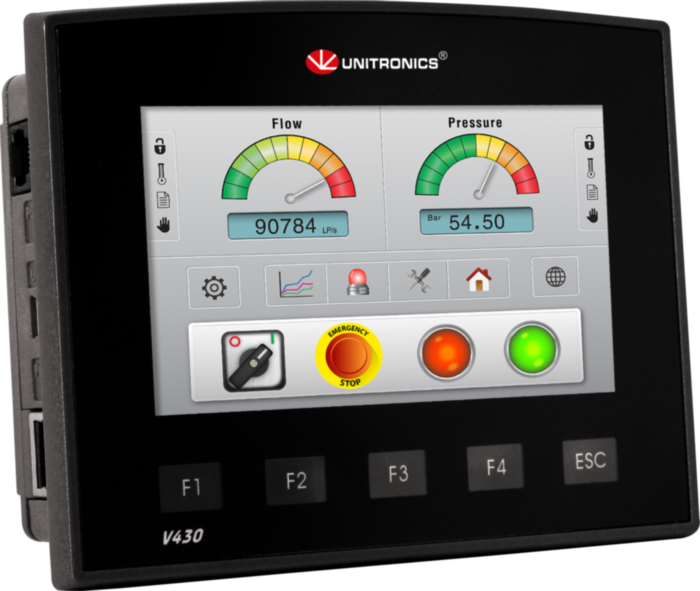

V430-J-TRA22 Unitronics Vision 4.3" graphic display and keypad HMI and PLC onboard I/Os accepts I/O expansions up to 512 I/Os

Why Choose the Unitronics V430-J-TRA22 Vision PLC + HMI?

The Unitronics V430-J-TRA22 is a versatile PLC with integrated colour touchscreen HMI from the Vision430 series, designed for industrial automation, machine control and process applications. By combining programmable logic control, operator interface and onboard I/O in a single compact controller, it simplifies panel design and reduces wiring and installation time.

The controller features a 4.3 inch wide-aspect TFT colour touchscreen with a resolution of 480 × 272 pixels, enabling operators to clearly visualise machine status, alarms and process values. The Vision series integrates PLC programming and HMI development within the VisiLogic all-in-one software environment, allowing engineers to design logic, screens and communications within a single platform.

The V430-J-TRA22 includes flexible onboard I/O combining digital, analogue and temperature inputs with relay, transistor and analogue outputs. Systems can also be expanded using local or CANbus I/O modules, supporting up to 512 total I/O points for larger automation installations.

Key Features

• Integrated PLC and touchscreen HMI for compact automation systems.
• 4.3 inch TFT colour display with 480 × 272 resolution.
• 8 digital inputs including a configurable high-speed counter input.
• 2 analogue/digital inputs for voltage or current signals.
• 2 PT100 or thermocouple inputs for temperature measurement.
• 4 relay outputs for switching industrial loads.
• 4 high-speed transistor outputs supporting PWM up to 200 kHz.
• 2 analogue outputs for process control signals.
• RS232 and RS485 communication for industrial networking.
• Expandable up to 512 I/O points via external expansion modules.

Technical Specifications

• Manufacturer: Unitronics
• Series: Vision 430
• Model: V430-J-TRA22
• Device type: PLC with integrated HMI
• Display: 4.3 inch TFT colour touchscreen
• Display resolution: 480 × 272 pixels
• Colour depth: 65,536 colours
• Supply voltage: 24 V DC (20.4 to 28.8 V DC)
• Digital inputs: 8 inputs including high-speed counter capability
• Analogue inputs: 2 multi-range inputs (0–10 V, 0–20 mA, 4–20 mA)
• Temperature inputs: 2 thermocouple or PT100 inputs
• Relay outputs: 4 SPST-NO outputs
• High-speed transistor outputs: 4 NPN outputs up to 200 kHz PWM
• Analogue outputs: 2 outputs (0–10 V or 4–20 mA)
• Communication ports: RS232 / RS485 serial port
• Programming port: Mini-USB
• Application memory: approx. 1 MB
• Expansion capability: up to 512 I/O using expansion modules
• Mounting: Panel mount
• Protection rating: IP65 / IP66 / NEMA 4X front panel
• Operating temperature: 0 °C to 50 °C
• Dimensions: approx. 136 × 105 × 61 mm

Typical Applications

• Machine automation and OEM equipment.
• Packaging and processing machinery.
• Material handling and conveyor systems.
• Industrial temperature and process control.
• Factory automation and production lines.

Trusted by Automation Engineers

Unitronics Vision PLC + HMI controllers are widely used by automation engineers because they combine programmable control, operator interface and communications in a single compact industrial platform.
