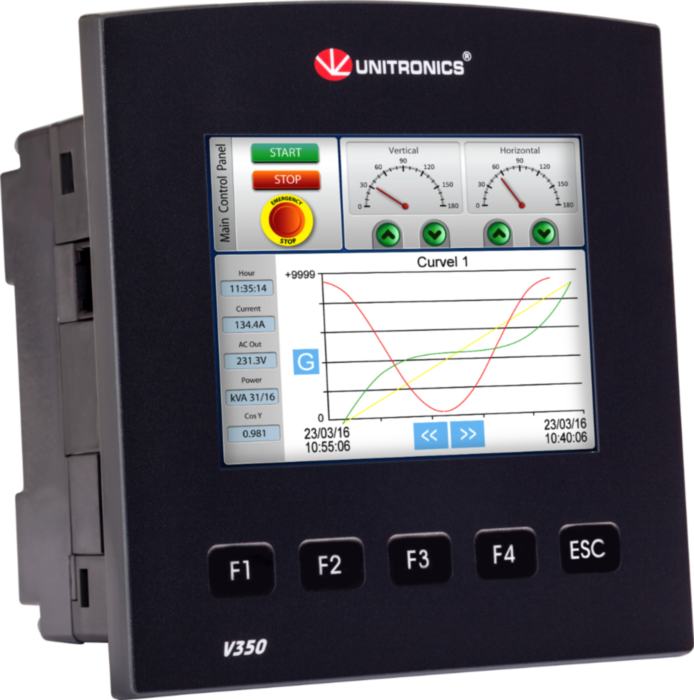

V350-JS-TA24 Unitronics Vision 3.5" graphic display and keypad HMI and PLC onboard I/Os accepts I/O expansions up to 512 I/Os

Why Choose the Unitronics V350-JS-TA24 Vision PLC with Colour Touchscreen?

The Unitronics V350-JS-TA24 is a powerful PLC with integrated colour touchscreen HMI from the Vision350 series, designed for industrial automation, machine control and demanding OEM applications. By combining programmable logic control, graphical operator interface and onboard I/O in a single device, the controller reduces panel complexity while delivering flexible automation capability.

The unit features a 3.5-inch colour TFT touchscreen display that enables operators to monitor system performance, adjust process parameters and interact with machines directly from the controller interface. Integrated onboard I/O supports digital, analogue and temperature sensor inputs along with transistor and analogue outputs for flexible connection to industrial equipment.

The JS variant provides extended temperature operation, allowing the controller to operate reliably in environments ranging from −30 °C to +60 °C. This makes it suitable for outdoor equipment, industrial environments and harsh operating conditions where standard PLCs may not be suitable.

Key Advantages

• Integrated PLC and colour touchscreen HMI reduces system components.
• 3.5″ TFT colour touchscreen provides intuitive operator control.
• Extended temperature operation from −30 °C to +60 °C.
• Multiple I/O types including digital, analogue and temperature inputs.
• High-speed transistor outputs suitable for motion and automation control.
• Expandable architecture supporting up to 512 I/O points.

Key Features

• Vision350 PLC with integrated colour touchscreen HMI.
• 3.5″ colour TFT LCD touchscreen.
• 320 × 240 pixel resolution graphic display.
• 8 digital inputs for industrial sensors.
• 2 analogue / digital inputs configurable for voltage or current signals.
• 2 temperature inputs supporting PT100 or thermocouple sensors.
• 10 high-speed transistor outputs.
• 2 analogue outputs for process control signals.

Technical Specifications

• Manufacturer: Unitronics
• Series: Vision350 PLC + HMI
• Model: V350-JS-TA24
• Display: 3.5″ colour TFT touchscreen
• Resolution: 320 × 240 pixels
• Power supply: 24 V DC (20.4–28.8 V operating range)
• Digital inputs: 8 inputs
• Analogue inputs: 2 configurable analogue inputs
• Temperature inputs: 2 PT100 / thermocouple inputs
• Transistor outputs: 10 outputs
• Analogue outputs: 2 outputs
• Communication: RS-232 / RS-485 serial interfaces
• I/O expansion: up to approximately 512 I/O points via expansion modules
• Operating temperature: −30 °C to +60 °C
• Protection rating: IP66 / NEMA 4X front panel when panel mounted

Integrated PLC and HMI Automation Platform

The Unitronics Vision series integrates PLC control logic and graphical HMI functionality into a single automation platform. This architecture simplifies machine automation while supporting advanced features such as alarm management, data logging, recipe control and PID loops within a compact industrial controller.

Typical Applications

• OEM machinery and industrial automation systems.
• Packaging and production line equipment.
• Outdoor or harsh-environment automation systems.
• Material handling and conveyor control.
• Industrial process monitoring and control.

Trusted by Automation Engineers

Unitronics Vision PLC controllers are widely used by machine builders and automation engineers to provide reliable control systems with integrated graphical operator interfaces.
