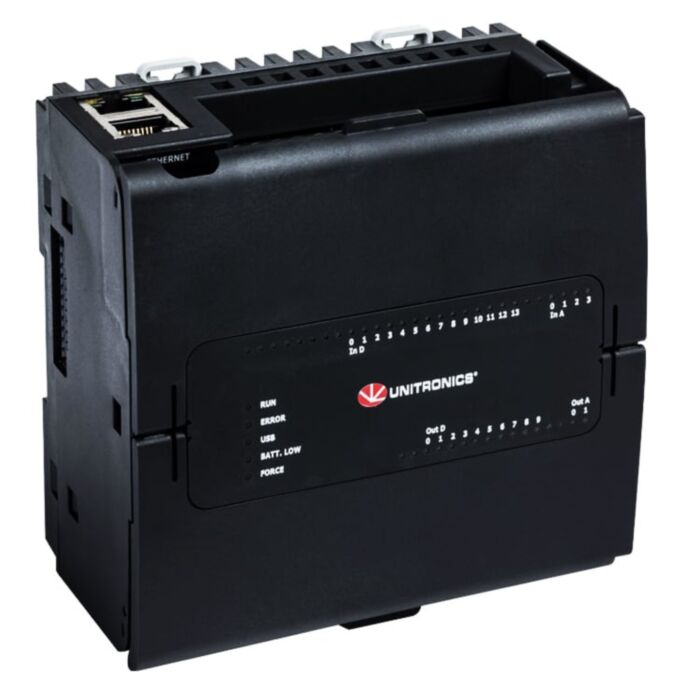

USC-C5-T24 Unitronics Unistream PLC with 10 digital/2 analog inputs and 12 transistor outputs with Unicloud included

Why Choose the Unitronics USC-C5-T24 UniStream Cloud PLC?

The Unitronics USC-C5-T24 is a high-performance DIN-rail mounted PLC controller with integrated I/O and built-in UniCloud connectivity, designed for advanced industrial automation, machine control and Industry 4.0 applications. As part of the powerful UniStream Cloud series, it combines robust processing power, extensive communication capabilities and cloud-enabled monitoring within a compact and scalable automation platform.

Designed for OEM machine builders, system integrators and industrial automation engineers, the USC-C5-T24 delivers advanced control functionality alongside seamless cloud connectivity. The controller enables remote monitoring, alarm notifications, data visualisation and predictive maintenance through Unitronics UniCloud without requiring additional gateways or cloud hardware.

Featuring 10 digital inputs, 2 analogue inputs and 12 PNP transistor outputs including two high-speed PWM outputs, the USC-C5-T24 provides flexible machine control capabilities while maintaining a compact DIN-rail footprint. Its expandable architecture allows integration with Uni-I/O modules, remote I/O systems and additional communication modules for larger automation projects.

Key Advantages

• Integrated UniCloud connectivity for remote monitoring and diagnostics.
• 10 digital inputs and 12 transistor outputs for versatile machine control.
• 2 high-speed PWM outputs for demanding automation applications.
• Dual Ethernet ports for industrial networking and IIoT integration.
• Supports MQTT, EtherNet/IP, Modbus TCP, CANopen and additional protocols.
• Expandable with Uni-I/O, Remote I/O and Uni-COM modules.
• DIN-rail mounting design reduces panel space requirements.

Key Features

• Unitronics UniStream Cloud series.
• 10 isolated 24 V DC digital inputs.
• 2 analogue inputs (0-10 V / 0-20 mA / 4-20 mA, 12-bit).
• 12 PNP transistor outputs.
• 2 PWM outputs up to 30 kHz.
• Built-in UniCloud functionality with 5-year start-up subscription.
• 2 Ethernet ports (10/100 Base-T).
• USB Host and Mini-USB programming ports.
• Web Server, FTP, SQL Client and VNC support.
• Supports MQTT, SNMP, BACnet, EtherNet/IP and Modbus communications.
• Advanced alarm management and data logging.
• Expandable to large distributed I/O systems.

Technical Specifications

• Manufacturer: Unitronics
• Series: UniStream Cloud
• Model: USC-C5-T24
• Product type: PLC controller with integrated I/O
• Supply voltage: 24 V DC nominal
• Operating voltage range: 20.4 to 28.8 V DC
• Digital inputs: 10 x 24 V DC sink/source
• Analogue inputs: 2 x 0-10 V / 0-20 mA / 4-20 mA, 12-bit
• Digital outputs: 12 x PNP transistor outputs
• PWM outputs: 2 x high-speed outputs up to 30 kHz
• Ethernet ports: 2 x RJ45 10/100 Base-T
• USB ports: USB Host and Mini-USB Device
• Memory: 512 MB RAM, 3 GB system memory, 1 GB user memory
• Protection rating: IP20 / NEMA 1
• Mounting type: DIN-rail mounting
• Operating temperature: -20°C to +55°C
• I/O expansion: Up to 2,048 I/O points

Industrial Automation with Integrated Cloud Connectivity

The USC-C5-T24 combines powerful PLC processing, integrated I/O and built-in cloud connectivity within a single compact controller. Through UniCloud, users can access real-time machine data, configure dashboards, receive alerts and monitor performance remotely without the need for additional networking hardware.

With support for modern industrial communication protocols, remote I/O expansion and advanced data management tools, the USC-C5-T24 provides a scalable platform suitable for both standalone machines and complex distributed automation systems.

Typical Applications

• OEM machine building.
• Packaging and assembly machinery.
• Industrial process automation.
• Material handling systems.
• Water and wastewater treatment.
• Building automation systems.
• Energy monitoring and management.
• Industry 4.0 and IIoT deployments.

Trusted by Automation Engineers Worldwide

Unitronics UniStream Cloud PLCs are trusted by OEM manufacturers, machine builders and industrial automation professionals seeking scalable control systems, integrated cloud connectivity and advanced industrial communications.
