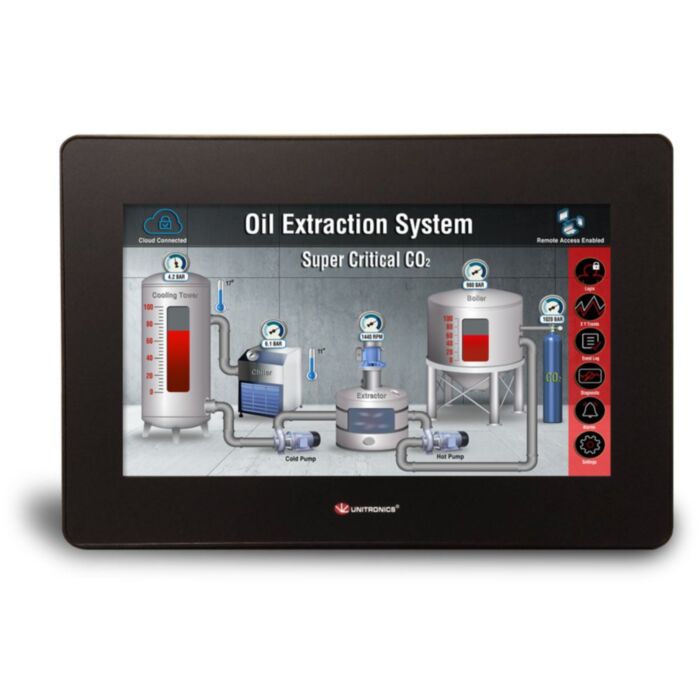

US10-B5-B1 Unitronics Unistream PLC with built in 10.1" HMI
MPN: US10-B5-B1
Alt. SKU: US10B5B1
Special Price
£1,147.75
£956.46
Regular Price
£1,350.30
Why Choose the Unitronics US10-B5-B1 UniStream PLC with Built-in HMI?
The Unitronics US10-B5-B1 is a powerful PLC + HMI all-in-one programmable controller from the UniStream Built-in series. It integrates a high-resolution touchscreen interface with a full PLC CPU in a single compact unit, providing a powerful solution for industrial automation, machine control and process monitoring.
This model features a 10.1-inch colour touchscreen HMI combined with the UniStream control platform, allowing engineers and operators to program, monitor and control machinery from one device. The integrated architecture simplifies system design while reducing panel space, wiring and installation complexity.
The US10-B5-B1 is designed for applications requiring visualisation, control and connectivity within one platform. It supports multiple industrial communication protocols and remote monitoring capabilities, making it suitable for advanced automation systems across many industries.
Key Advantages
- All-in-one PLC + HMI controller combining control and visualisation.
- 10.1 inch colour touchscreen for intuitive operator interaction.
- Compact panel-mounted design reduces wiring and cabinet space.
- Supports advanced industrial networking and communication protocols.
- Expandable architecture supporting distributed I/O modules.
- Suitable for demanding industrial environments.
Key Features
- UniStream Built-in PLC controller with integrated HMI.
- 10.1 inch WSVGA touchscreen display (1024 — 600 resolution).
- Resistive colour TFT display with anti-glare surface.
- Integrated CPU for machine control and automation.
- Ethernet communication for networking and remote access.
- USB host and Mini-USB ports for programming and peripherals.
- microSD card support for data logging and storage.
- Expandable via UniStream local and remote I/O modules.
Technical Specifications
- Manufacturer: Unitronics
- Series: UniStream Built-in
- Model: US10-B5-B1
- Controller type: PLC with integrated HMI
- Display size: 10.1 inch
- Display resolution: 1024 — 600 (WSVGA)
- Display type: Colour TFT LCD, resistive touchscreen
- Supply voltage: 10.2 to 28.8 V DC (12 / 24 V DC nominal)
- Memory: approx. 512 MB RAM, 3 GB system storage, 1 GB user storage
- Communication ports: Ethernet, USB host, Mini-USB device
- Supported protocols: Ethernet/IP, Modbus TCP, BACnet, RS-232, RS-485, CANopen and others
- Mounting: Panel mounted HMI controller
- Protection rating: IP66 / NEMA 4X front panel
- Operating temperature: −20 °C to +55 °C
Integrated PLC and HMI Automation
All-in-one PLC + HMI platforms allow engineers to combine machine control, operator interface and industrial networking within a single device. Systems such as the UniStream Built-in series simplify machine architecture while providing powerful automation capabilities and advanced connectivity features.
The US10-B5-B1 provides an efficient automation platform capable of controlling industrial processes while delivering a modern visual interface for operators and maintenance engineers.
Typical Applications
- Industrial machine automation.
- Manufacturing and production lines.
- HVAC and building automation.
- Water treatment and utilities control.
- Packaging and material handling systems.
Frequently Asked Questions
What is the US10-B5-B1 used for?
The US10-B5-B1 is an integrated PLC and touchscreen HMI used for industrial automation, machine control and operator interface applications.
What screen size does the controller include?
The controller includes a 10.1 inch colour touchscreen display with a 1024 — 600 WSVGA resolution.
Can the controller communicate with industrial networks?
Yes. The controller supports industrial protocols such as Ethernet/IP, Modbus TCP and other communication standards.
Does the controller support external I/O expansion?
Yes. UniStream controllers support expansion using local or remote UniStream I/O modules.
Where is this PLC typically installed?
The device is designed for panel mounting on industrial control cabinets with an IP-rated front interface.
Trusted by Automation Engineers
UniStream PLC + HMI controllers are widely used by machine builders and system integrators to combine control logic, visualisation and networking in a single industrial automation platform.
| PLC Range | Unitronics Unistream |
|---|---|
| Screen Size | 10.1" |
| Software Included | Unicloud can be added |
| Manufacturer | Unitronics |
| Manufacturer Part Number | US10-B5-B1 |
| Module type | HMI and PLC |
| Alternative Product SKU | US10B5B1 |
