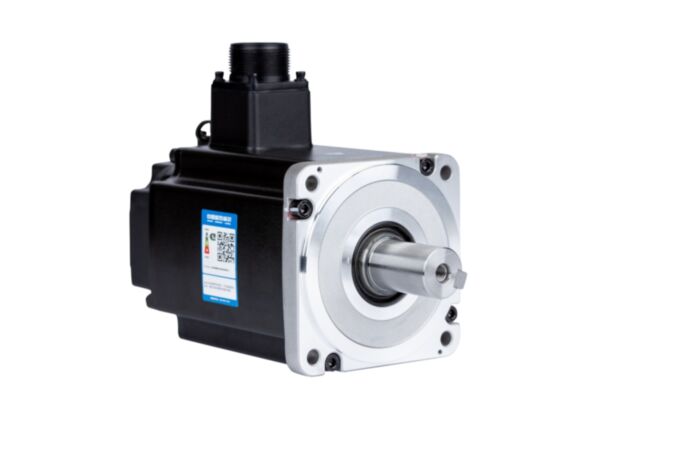

UMM-0015CA-B5 Unitronics SERVO MT 1.5KW 200V, 1/3phase A23 B5
MPN: UMM-0015CA-B5
Alt. SKU: UMM0015CAB5
Special Price
£763.98
£636.65
Regular Price
£898.80
Why Choose the Unitronics UMM-0015CA-B5 Servo Motor?
The Unitronics UMM-0015CA-B5 is a high-performance AC servo motor engineered for precise motion control in demanding industrial automation systems. As part of the Unitronics B5 servo motor series, this model delivers approximately 1.5 kW rated output and operates within a 200–230 V class three-phase servo system, providing reliable torque, accurate positioning and stable speed regulation for modern machine applications.
The motor incorporates a high-resolution 23-bit absolute encoder, allowing highly accurate motion feedback and repeatable positioning performance. With a typical 3000 rpm operating speed and a low-inertia rotor design, the motor enables fast acceleration and smooth control for dynamic industrial processes such as robotics, packaging machinery and automated production equipment.
The UMM-0015CA-B5 is designed to operate with compatible Unitronics UMD B5 servo drives, forming part of the integrated Unitronics motion ecosystem. Through the UniLogic software platform, engineers can configure motion profiles, perform auto-tuning and manage synchronised multi-axis automation systems from a single unified environment.
Key Features
- AC servo motor for industrial motion control applications.
- Rated output approximately 1.5 kW.
- 200–230 V three-phase operation.
- 23-bit absolute encoder for precise positioning feedback.
- Low-inertia rotor design enabling fast acceleration and dynamic response.
- Smooth torque delivery with accurate speed regulation.
- Compatible with Unitronics UMD B5 servo drives.
- Designed for continuous operation in demanding automation environments.
Technical Specifications
- Manufacturer: Unitronics
- Series: B5 Servo Motor Series
- Model: UMM-0015CA-B5
- Motor type: AC servo motor
- Rated output power: approx. 1.5 kW
- Supply voltage: 200–230 V AC
- Phase: Three-phase
- Rated speed: approx. 3000 rpm
- Encoder type: 23-bit absolute encoder
- Rated torque: approx. 7.1 Nm
- Brake: No brake
- Protection rating: typically IP65
- Mounting flange: approx. 130 mm
- Compatibility: Unitronics UMD B5 servo drives
- Application: Industrial motion control systems
Typical Applications
- Industrial robotics and automation systems.
- Packaging and labelling machinery.
- Automated assembly and manufacturing equipment.
- Material handling and conveyor automation.
- Precision positioning platforms.
- General industrial motion control.
Frequently Asked Questions
What is the UMM-0015CA-B5 servo motor used for?
This servo motor is designed for industrial automation systems that require precise positioning, responsive torque and stable speed control.
What is the rated power of the UMM-0015CA-B5?
The motor provides approximately 1.5 kW of rated output power.
Does the UMM-0015CA-B5 include a holding brake?
No. The UMM-0015CA-B5 version is supplied without a brake. Brake-equipped variants are available in other models of the series.
What encoder does this servo motor use?
The motor uses a 23-bit absolute encoder that provides precise feedback for accurate motion control.
Which drives are compatible with this motor?
The motor is designed to operate with compatible Unitronics UMD B5 servo drives within the Unitronics motion control ecosystem.
Trusted by Automation Engineers
Unitronics servo motors and drives are widely deployed by machine builders and automation engineers to deliver reliable, high-precision motion control in modern industrial automation systems.
| Packed Quantity | 1 |
|---|---|
| Manufacturer | Unitronics |
| Manufacturer Part Number | UMM-0015CA-B5 |
| Alternative Product SKU | UMM0015CAB5 |
