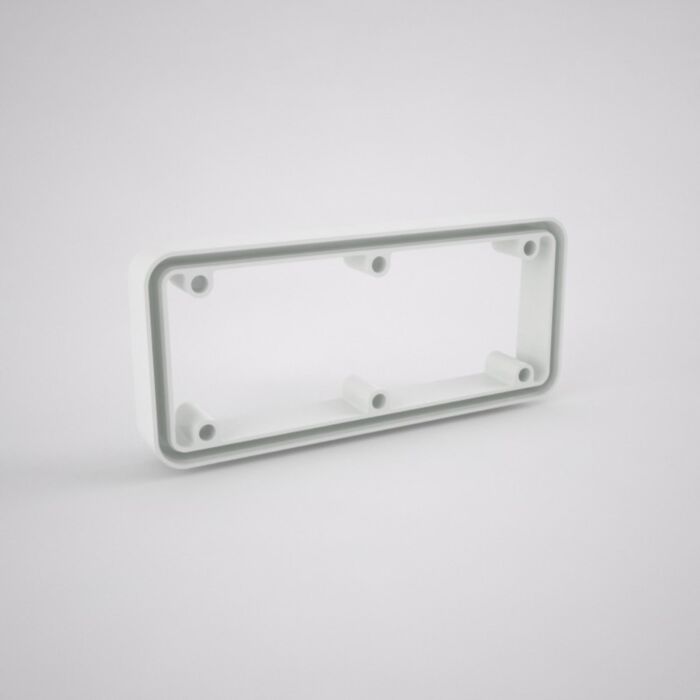

UA-230X100 Safybox Flange Vertical For BRES-325 & BRES-43
MPN: UA-230X100
Alt. SKU: UA230X100
Special Price
£16.36
£13.63
Regular Price
£26.18
Why Choose the Safybox UA-230X100 Internal Mounting Plate?
The Safybox UA-230X100 is a precision-cut internal mounting plate designed to provide a stable and secure platform for electrical and control components within compatible industrial enclosures. Manufactured from durable galvanised steel with a corrosion-resistant finish, it delivers strength and rigidity for professional panel builds.
Measuring approximately 230 x 100 mm, this compact mounting plate is ideal for supporting terminal blocks, relays, small controllers and DIN rail sections. It improves internal organisation, simplifies component layout and enhances serviceability in junction boxes, control panels and automation enclosures.
Key Features
- Galvanised steel construction for strength and corrosion resistance.
- Compact 230 x 100 mm mounting surface.
- Pre-drilled fixing points for secure installation.
- Provides a stable base for DIN rail sections and modular components.
- Improves internal layout and wiring organisation.
- Designed for compatibility with selected Safybox enclosures.
- Durable finish suitable for industrial environments.
Technical Specifications
- Manufacturer: Safybox
- Model: UA-230X100
- Product type: Internal mounting plate
- Material: Galvanised steel
- Finish: Corrosion-resistant coating
- Dimensions: Approx. 230 x 100 mm
- Mounting: Internal enclosure fixing points
Typical Applications
- Mounting terminal blocks and relays.
- Supporting DIN rail sections.
- Compact control panel assemblies.
- Industrial automation enclosures.
- Junction boxes requiring structured internal layouts.
Frequently Asked Questions
What is the UA-230X100 used for?
The UA-230X100 is an internal mounting plate used to securely mount electrical and control components inside compatible enclosures.
What size is this mounting plate?
The plate measures approximately 230 x 100 mm, providing a compact mounting surface.
What material is the UA-230X100 made from?
It is manufactured from galvanised steel with a corrosion-resistant finish for durability.
Can it support DIN rail components?
Yes. It provides a stable base for DIN rail sections and modular equipment.
Where is this plate typically installed?
It is typically installed inside control panels, junction boxes and automation enclosures to improve organisation and component support.
| Manufacturer Part Number | UA-230X100 |
|---|---|
| Manufacturer | Safybox |
| Material | Polymide |
| Degree of protection (IP) | IP66 |
| Depth | 20mm |
| Width | 100mm |
| Height | 230mm |
| Alternative Product SKU | UA230X100 |
Write Your Own Review
BRES range of monoblock cabinets for electricity manufactured in fiberglass reinforced polyester (GRP enclosure).
Characteristics of the SAFYBOX-BRES electrical box:
Monoblock body with door, made of light grey fiberglass reinforced polyester Ral 7035 (GRP / SMC)
Hinged door with key lock. Version of the cabinet with door with transparent window available (UV stabilized).
The Bres enclosures are rated at IP66 tightness and impact resistance IK10, perfect for outdoor applications.
There are a wide range of accessories including:
- Modular chassis,
- Plinths
- Viewing windows
- Locking systems
- Cable glands
- Wall brackets
- air vents and much more
Innovation and added value:
The Bres range comes in 8 different sizes to suit most applications, if you cannot see the size you require please get in touch as there are other ranges from Uriarte Safybox which include the CA, DIN and ART which may have the size you require
The Bres range can be Individual installed or connected to each other to make electrical panels thanks to coupling flanges (modularity).
Flexibility: Easy to perform machining for cable input / output and customize the electrical enclosure to your needs. In our factories we have machining robots that allow us to do this work for you quickly, clean and economically.
Double insulation: Through the use of double insulated holes for wall mounting, the electrical equipment or switchgear assembly inside is completely isolated from the outside in order to avoid accidents and certify its electrical safety and insulation.
Benefits of the materials:
The reinforced thermoset polyester with which they are manufactured is the best insulating material available in the market. Ideal even in the most aggressive environments.
Self-extinguishing material. If there is a fire, the flame will not spread. Polyester is a thermostable and will not deform if there is overheating or fire.
Non-conductive material of electricity: Unlike metal boxes there is no danger in handling and we are not at risk of electrical shock (See accident video by download in the security section)
Easy maintenance They are ideal for outdoor use since they perfectly withstand the effects of weather in aggressive environments thanks to their material. It is non-hygroscopic and is protected against UV light, which allows an optimum operation of + 100º to -50º.
Total absence of toxic components and heavy metals fulfilling perfectly with the European Regulation of dangerous substances.
Customisation Options
Uriarte Safybox offer a wide range of customisation options on their range of enclosures.
Laser marking – Uriarte offer a laser marking service so you can have your company logo added the front of your enclosure or get rid of the mimic on the front of your enclosure and have the information lasered straight on to the front of the Bres enclosure
Hole cutting – Uriarte Safbox offer a hole cutting service, you can get you enclosures ready to install the buttons, HMI’s or indicators, saving you time and ensuring a quality finish
Turnkey solutions – Uriarte also offer a full turnkey solution, providing you with a fully equipped GRP enclosure
