TS20521AS - METAL ROLL LEV RESET BUTT LEFT 1NO+1NC
MPN: TS20521AS
Special Price
£53.93
£44.94
Regular Price
£89.89
Why Choose the TS20521AS?

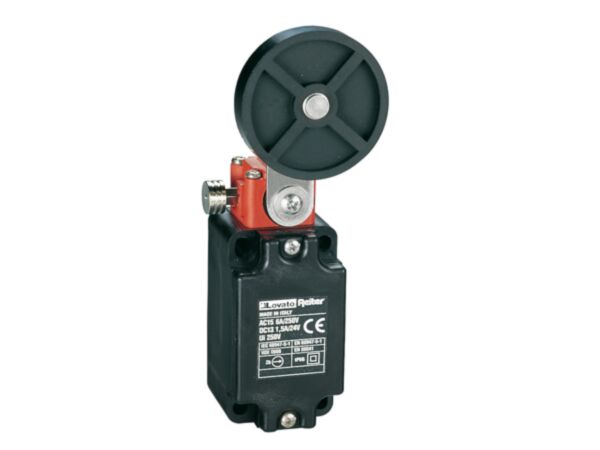

Engineered for precise position detection, the Lovato TS20521AS metal and plastic limit switch combines a robust thermoplastic housing with a metal roller lever actuator. Built to EN 50041 dimensions and designated TS2, it features an integrated RESET button and 1NO+1NC snap action contacts for reliable signalling. A PG13.5 cable entry simplifies wiring and integration across control panels and machinery in demanding industrial environments.
Delivering dependable performance, this switch is rated Ith 6 A and operates from -25 to +70 °C, with a mechanical life of 100000 cycles. The metal roller Ø20 x 5 mm ensures smooth actuation, while weight is just 135 g. Conforms to IEC/EN 60947-1 and 60947-5-1, IEC/EN 60204-1, EN 81-1 and EN 50041, plus UL508 and CSA C22.2 n° 14.
Key Benefits
- EN 50041 dimensions for straightforward, standardised mounting.
- 1NO+1NC snap action contacts for clear, reliable signalling.
- Integrated RESET button for safe, manual circuit recovery.
- Robust thermoplastic housing with durable metal roller actuator.
- PG13.5 cable entry speeds wiring and installation.
- Operates -25 to +70 °C for broad ambient suitability.
- Ith 6 A rating supports common control applications.
- Mechanical life of 100000 cycles reduces maintenance.
Technical Specification
- Product type designation: TS2
- Ith (IEC): 6 A
- Weight: 135 g
- Mechanical life: 100000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato TS20521AS limit switch unit
- Pre-mounted metal roller lever actuator
- Integrated RESET button
- Manufacturer datasheet (downloadable)
Applications
- Conveyor and material handling systems
- Machine tools and industrial equipment interlocking
- Packaging and processing lines
- Lifts and hoists
- General factory automation and control panels
Frequently Asked Questions
What is the contact configuration of the TS20521AS?
It provides 1NO+1NC snap action contacts for reliable switching and signalling.
What cable entry does this limit switch use?
It features a PG13.5 cable entry for straightforward wiring.
What are the operating temperature limits?
The operating range is -25 to +70 °C, with storage from -40 to +70 °C.
Does the device conform to EN 50041 dimensions?
Yes, it is built to EN 50041 dimensions for standardised mounting.
What is the actuator type and roller size?
It uses a roller lever actuator with a metal roller Ø20 x 5 mm.
Safety note: Install and service only by competent personnel. Isolate power before wiring or adjustment and use within the specified ratings and temperatures to meet the listed standards.
| Manufacturer Part Number | TS20521AS |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975084809 |
