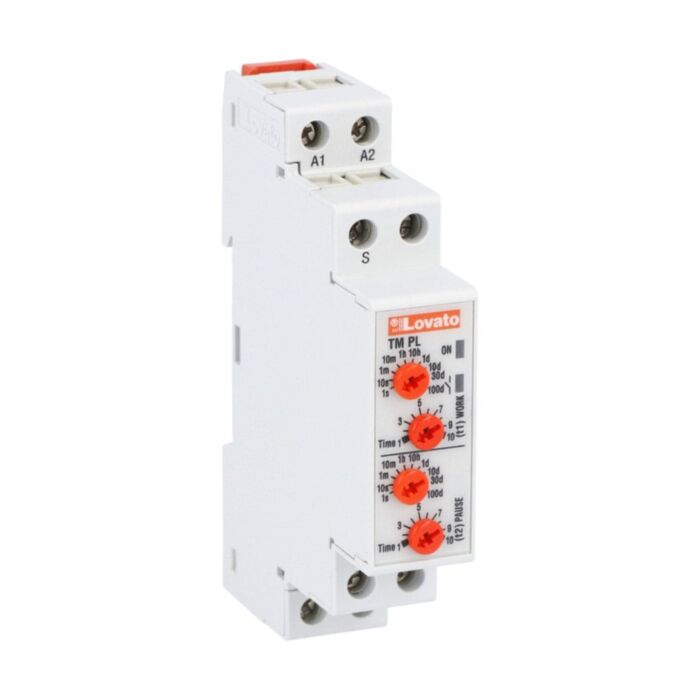

TMPL - MOD.TIMER RECYCLE WITH 2 TIME SCALES MUL
MPN: TMPL
Special Price
£96.31
£80.26
Regular Price
£160.52
Why Choose the TMPL?
Designed for reliable automation control, the Lovato TMPL Time Relay (SKU TMPL) offers modular DIN rail mounting and a recycle function with independent timings. Simple potentiometer programming enables fast setup, while an Ith (IEC) of 8 A and 4 kV rated impulse withstand voltage support robust switching performance. Conformity to IEC/EN 61812-1, UL508 and CSA C22.2 n°14 aids specification and compliance.
Built for longevity and versatility, this time relay delivers a mechanical life of 30,000,000 cycles and dependable operation from -20 to +60 °C, with storage down to -30 °C. Compact at just 82 g, it integrates neatly into control panels. Ideal where repeatable on/off cycling and independent timing control are required across building services, machinery, and industrial process applications.
Key Benefits
- Modular DIN rail mounting for quick, tidy panel integration.
- Recycle function with independent timings for flexible control.
- Potentiometer programming enables fast, tool-free adjustment.
- 8 A Ith (IEC) rating supports robust switching loads.
- 4 kV impulse withstand voltage enhances electrical resilience.
- 30,000,000-cycle mechanical life for long service performance.
- Operates from -20 to +60 °C for varied environments.
- Compliance with IEC/EN 61812-1, UL508 and CSA standards.
Technical Specification
- Product type designation: TMPL
- Ith (IEC): 8 A
- Rated impulse withstand voltage Uimp: 4 kV
- Mechanical life: 30000000 cycles
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
- Weight: 82 g
What’s Included
- Lovato TMPL time relay module
- Quick start and installation leaflet
- Compliance and safety information
Applications
- Repeating on/off cycle control in automation panels
- HVAC equipment and fan cycling sequences
- Pump control and level management with timed intervals
- Conveyor and machinery duty cycling
- Lighting control with periodic switching
Frequently Asked Questions
How is the TMPL time relay programmed?
Timing is adjusted via potentiometers for straightforward setup.
Does the TMPL mount on a DIN rail?
Yes, it is designed for modular DIN rail mounting.
What is the mechanical life of the TMPL?
It is rated for a mechanical life of 30,000,000 cycles.
What temperature range can it operate in?
It operates from -20 to +60 °C and stores from -30 to +80 °C.
Which standards does the TMPL comply with?
It conforms to IEC/EN 61812-1, UL508 and CSA C22.2 n°14.
Safety note: Install and commission only by qualified personnel. Always isolate power before wiring or adjustment and follow applicable standards and local regulations.
| Manufacturer Part Number | TMPL |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975147139 |
