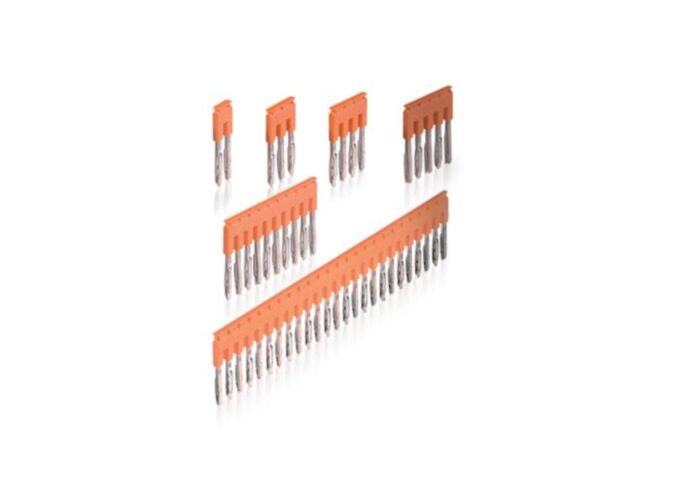

jb6-10 - jumper bar zk4 terminal
MPN: 1SNK906310R0000
Alt. SKU: JB6-10
Special Price
£3.22
£2.68
Regular Price
£5.36
jb6-10 - jumper bar zk4 terminal is available to buy in increments of 1
Why Choose Terminal Blocks?
Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Conducting Accessory Type :: Jumper Bar
- Number of Poles :: 10
- PCB Mount Retention Type :: Screwless
- Colour: Orange
- Pitch: 6 mm [ .236 in ]
- Short-Time Withstanding Current Rating @ 1s (A):: 720
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Current Rating (CSA) (A):: 30
- Current Rating (UL) (A):: 30
- Current Rating (IEC) (A):: 41
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Power Loss (W):: 1.3
- Product Weight :: 7.4 g [ .261 oz ]
- Plastic & Resin Material Type :: Polyamide
- Contact Current Rating (Max) (A):: 41
- Product Height :: 57 mm [ 2.244 in ]
- Product Depth :: 26.8 mm [ 1.055 in ]
- Product Width :: 6 mm [ .236 in ]
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .236 in ].
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK906310R0000 |
|---|---|
| Height | 57mm |
| Width | 6mm |
| Depth | 26.8mm |
| Manufacturer | Entrelec |
| Packed Quantity | 1 |
| Barcode | 3472599097650 |
| Terminal Type | Jumper Bar |
| Terminal Size | 6mm |
| Alternative Product SKU | JB6-10 |
