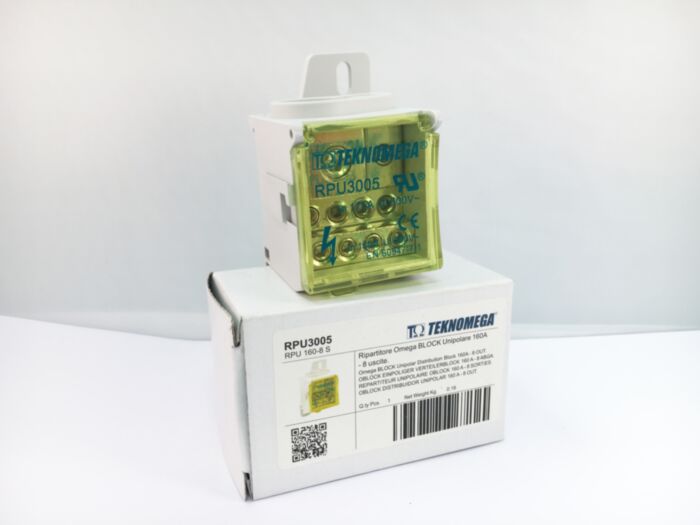

Teknomega RPU3005 - Omega Unipolar 1 Pole Distribution Block 160A 9 Output
MPN: RPU3005
Alt. SKU: RPU 160-9
Special Price
£19.98
£16.65
Regular Price
£28.55
Why Choose the Teknomega RPU3005 Distribution Block?
The Teknomega RPU3005 is a high-capacity single-pole DIN rail power distribution block designed for efficient power distribution within industrial switchboards and electrical control panels. With a rated current of 160 A and 8 primary output terminals plus an additional input/output terminal, it enables a single incoming conductor to be safely distributed to multiple outgoing circuits while maintaining organised panel wiring.
The unit features a durable self-extinguishing PA6 UL94-V0 insulating body and a tinned copper conductor block for reliable conductivity and long operational life. A transparent polycarbonate protective cover helps prevent accidental contact with live parts while allowing quick visual inspection during installation and maintenance.
Key Features
- Single-pole power distribution block for compact panel wiring.
- 160 A rated current (up to 175 A UL).
- 8 output terminals plus 1 input/output terminal for flexible circuit branching.
- DIN rail quick hook-up mounting for fast installation in electrical cabinets.
- Self-extinguishing PA6 UL94-V0 housing improving electrical safety.
- Tinned copper conductor block ensuring reliable electrical conductivity.
- Transparent removable protective cover for safe inspection of connections.
- Halogen-free construction suitable for industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: RPU3005
- Reference: RPU 160-8 S
- Product type: 1 pole DIN rail distribution block
- Rated current (In): 160 A IEC/EN, 175 A UL
- Outputs: 8 output terminals + 1 input/output terminal
- Nominal insulation voltage (Ui): 1000 V
- Short circuit withstand current (Icw): 11 kA (1 s)
- Peak short circuit current (Ipk): 30 kA
- Input conductor size: 10 to 70 mm² (10–50 mm² with ferrules)
- Input/Output conductor size: 6 to 16 mm²
- Output conductor size: 2.5 to 16 mm²
- Insulating body: PA6 UL94-V0, grey RAL 7035
- Conductor block: Tinned copper
- Protection cover: Transparent PC UL94-V2
- Protection degree: IP20 (IP10 depending on wiring configuration)
- Mounting: DIN rail quick hook-up
- Operating temperature: ?30 °C to +85 °C
- Dimensions (L × H × P): 75 × 40 × 48 mm
- Weight: approx. 0.17 kg
- Standards: EN / IEC 60947-7-1, UL 1059
Typical Applications
- Power distribution inside industrial switchboards.
- Electrical automation and control panels.
- Machine building and OEM electrical equipment.
- Panel wiring where compact single-pole distribution is required.
- Commercial and industrial electrical installations.
Frequently Asked Questions
What is the Teknomega RPU3005 used for?
The RPU3005 is a single-pole distribution block used to split one incoming electrical supply into multiple outgoing circuits inside electrical panels or switchboards.
How many outputs does the RPU3005 provide?
The block provides eight output terminals plus one input/output terminal, allowing several circuits to be connected from a single incoming supply.
Is the RPU3005 DIN rail mountable?
Yes. The distribution block features a quick hook-up mounting system designed for standard DIN rails used in electrical cabinets.
What cable sizes can be connected?
The main input supports conductors from approximately 10 to 70 mm², while output terminals accept wires from 2.5 to 16 mm².
Which standards does the RPU3005 comply with?
The distribution block complies with EN / IEC 60947-7-1 and is recognised under UL 1059 for terminal blocks used in low-voltage switchgear.
Trusted by Panel Builders
Teknomega compact distribution blocks are widely used by electrical engineers and panel builders for reliable and space-efficient power distribution inside modern industrial switchboards and automation panels.
| Manufacturer Part Number | RPU3005 |
|---|---|
| Alternative Product SKU | RPU 160-9 |
| Manufacturer | Teknomega |
| Barcode | 8053685372667 |
| HS Code | 85369095 |
| Amperage | 160A |
| Outputs | 9 Outputs |
| Number of Poles | 1 pole |
| Packed Quantity | 1 |
