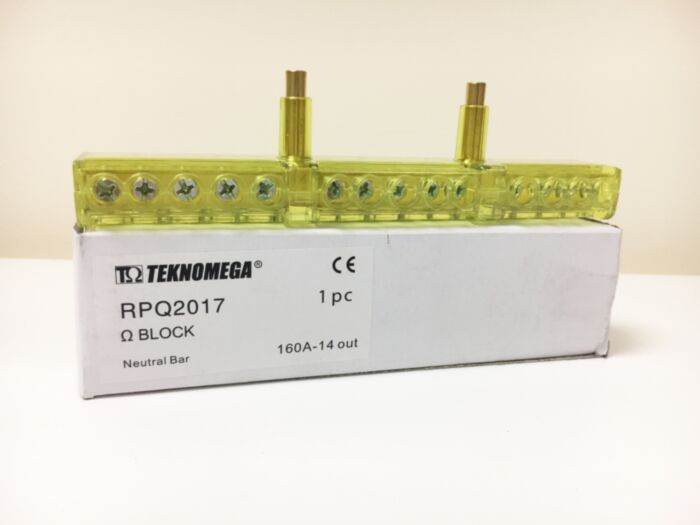

The Teknomega RPQ2017 Neutral Bar is engineered to enhance the connectivity and efficiency of your electrical distribution systems. Designed to integrate seamlessly with Teknomega's RPQ series distribution blocks, it provides a reliable solution for neutral conductor distribution in various industrial and commercial applications.
Key Takeaways
Designed for integration with RPQ series distribution blocks
Supports up to 160 A current rating
14 output terminals: 4 x Ø8.5 mm and 10 x Ø7 mm
Compact dimensions: 161 x 27 x 17.5 mm
Constructed with high-quality brass conductors
Halogen-free, flame-retardant insulating body
Complies with EN 60947-7-1 standards
Frequently Asked Questions About the Teknomega RPQ2017 Neutral Bar
The RPQ2017 Neutral Bar is a versatile component designed to facilitate the distribution of neutral conductors within electrical panels. Its compact design and robust construction make it an ideal choice for enhancing the functionality of RPQ series distribution blocks. The use of high-quality materials ensures durability and reliable performance in demanding environments.
Speed & Safety Benefits
Quick and secure installation with included galvanized steel screws
Enhanced safety through flame-retardant, halogen-free insulating body
Reliable performance with high-conductivity brass terminals
Key Features of the Teknomega RPQ2017 Neutral Bar
Product Type: Neutral bar for distribution blocks
Current Rating: 160 A
Outputs: 14 terminals (4 x Ø8.5 mm, 10 x Ø7 mm)
Dimensions: 161 mm (L) x 27 mm (H) x 17.5 mm (D)
Fixing Hole Spacing: 57 mm
Conductor Material: Brass
Insulating Body: Transparent yellow PC, UL 94-V2, halogen-free
Screws: Galvanized steel
Protection Degree: IP20
Operating Temperature: Up to +85°C
Standards Compliance: EN 60947-7-1
The RPQ2017 serves as a neutral bar, facilitating the distribution of neutral conductors within electrical panels, enhancing the connectivity and efficiency of the system.
It is designed to integrate seamlessly with Teknomega's RPQ series distribution blocks, including models RPQ1015, RPQ1016, RPQ1017, and RPQ1018.
The RPQ2017 features a brass conductor for optimal conductivity, a transparent yellow polycarbonate insulating body (UL 94-V2, halogen-free), and galvanized steel screws for secure installation.
It supports a current rating of up to 160 A, with an insulation voltage of 600 V, a short-circuit withstand current (Icw) of 9 kA for 1 second, and a peak short-circuit current (Ipk) of 22 kA.
Yes, the RPQ2017 complies with the EN 60947-7-1 standard, ensuring its suitability for use in low-voltage switchgear and controlgear assemblies.
Choose the Teknomega RPQ2017 Neutral Bar to enhance the functionality and reliability of your electrical distribution systems, ensuring safe and efficient operation.
