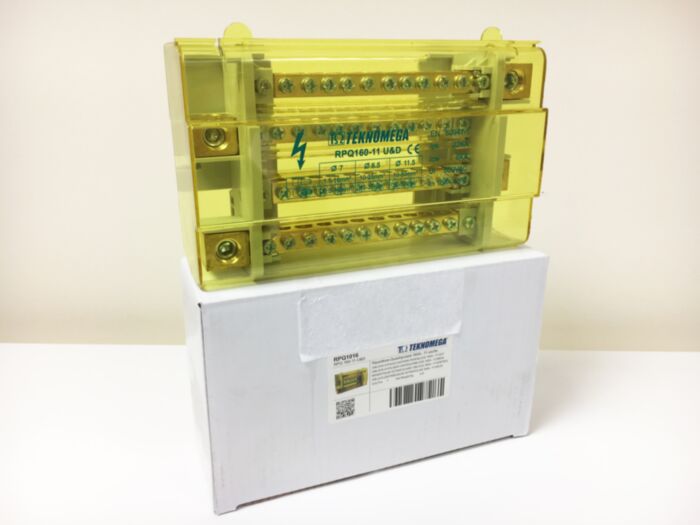

Teknomega RPQ1016 - Omega 4 Pole Distribution Block 160A 11 Outputs Up & Down Inputs
MPN: RPQ1016
Alt. SKU: RPQ 160-11-U&D
Special Price
£39.55
£32.96
Regular Price
£56.51
Why Choose the Teknomega RPQ1016 Distribution Block?
The Teknomega RPQ1016 is a heavy duty 4 pole DIN rail power distribution block designed for high capacity three phase and neutral power distribution in industrial switchboards and electrical control panels. Rated at 160 A with 11 output terminals, it enables a single incoming supply to be safely distributed across multiple outgoing circuits while maintaining organised wiring layouts inside the panel.
Built with a durable self extinguishing PA6 UL94-V0 insulating body and high conductivity brass terminals, the RPQ1016 delivers reliable electrical performance in demanding environments. A transparent removable protection screen prevents accidental contact with live parts while allowing clear inspection of connections during maintenance.
Key Features
- 4 pole distribution block for three phase and neutral power systems.
- 160 A rated current suitable for high capacity industrial switchboards.
- 11 output terminals enabling flexible circuit branching.
- DIN rail mounting for quick installation in electrical cabinets.
- Self extinguishing PA6 UL94-V0 insulation for improved electrical safety.
- Brass conductive terminals ensuring reliable conductivity.
- Transparent removable protective cover preventing accidental contact.
- Up & Down connection design allowing phase connections from both sides.
- Halogen free construction suitable for modern industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: RPQ1016
- Reference: RPQ 160-11-U&D
- Product type: 4 pole DIN rail distribution block
- Rated current (In): 160 A
- Number of outputs: 11 terminals
- Nominal insulation voltage (Ui): 1000 V
- Short circuit withstand current (Icw): 9 kA (1 s)
- Peak short circuit current (Ipk): 22 kA
- Input conductor size: 10 to 50 mm²
- Output conductor sizes: 10–35 mm² and 1.5–16 mm² depending on terminal
- Insulating body: PA6 UL94-V0
- Terminal material: Brass with galvanised steel screws
- Protection cover: Transparent polycarbonate UL94-V2
- Protection degree: IP10
- Mounting: DIN rail
- Maximum operating temperature: +85 °C
- Dimensions (L × H × P): 176 × 105 × 55 mm
- Standard compliance: EN / IEC 60947-7-1
Typical Applications
- Three phase power distribution in industrial switchboards.
- Electrical control panels and automation systems.
- Machine building and OEM electrical equipment.
- Main incomer or sub distribution wiring inside electrical cabinets.
- Commercial and industrial electrical installations.
Frequently Asked Questions
What is the Teknomega RPQ1016 used for?
The RPQ1016 distribution block divides a three phase and neutral electrical supply into multiple outgoing circuits inside switchboards and control panels.
How many outputs does the RPQ1016 provide?
The block provides 11 output terminals allowing multiple circuits to be connected from a single incoming supply.
Is the RPQ1016 suitable for DIN rail mounting?
Yes. The distribution block is designed for quick installation onto standard DIN rails used in industrial electrical cabinets.
What cable sizes can be connected?
The input terminals support conductors from 10 to 50 mm², while output terminals accept wires from approximately 1.5 to 35 mm² depending on the connection point.
Which standards does the RPQ1016 comply with?
The RPQ1016 complies with EN / IEC 60947-7-1, covering terminal blocks and auxiliary equipment used in low voltage switchgear.
Trusted by Panel Builders
Teknomega RPQ distribution blocks are widely used by electrical engineers and panel builders for safe, compact and reliable three phase power distribution in modern industrial switchboards.
| Manufacturer Part Number | RPQ1016 |
|---|---|
| Alternative Product SKU | RPQ 160-11-U&D |
| Manufacturer | Teknomega |
| Barcode | 8053685372568 |
| HS Code | 85369095 |
| Amperage | 160A |
| Outputs | 11 Outputs |
| Number of Poles | 4 Pole |
| Packed Quantity | 1 |
