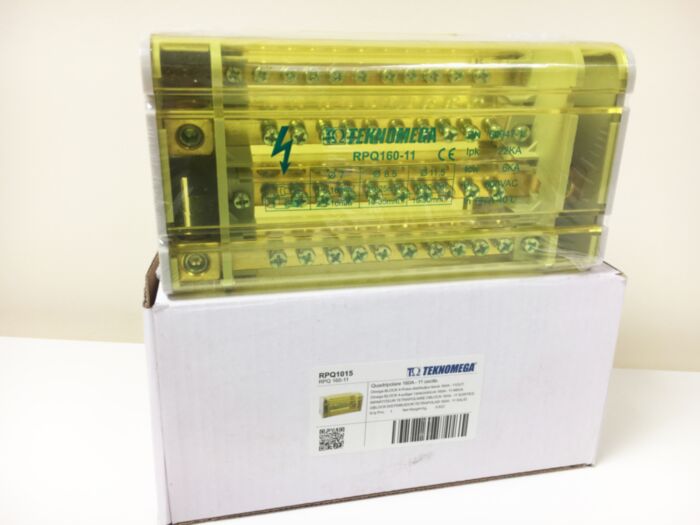

Teknomega RPQ1015 - Omega 4 Pole Distribution Block 160A 11 Outputs
MPN: RPQ1015
Alt. SKU: RPQ 160-11
Special Price
£36.96
£30.80
Regular Price
£52.80
Why Choose the Teknomega RPQ1015 Distribution Block?
The Teknomega RPQ1015 is a heavy-duty 4-pole DIN rail power distribution block engineered for high-capacity power distribution in industrial switchboards and electrical control panels. With a rated current of 160 A and 11 output terminals, it allows a single incoming three-phase and neutral supply to be efficiently distributed to multiple outgoing circuits while maintaining a clean and organised wiring layout.
The unit features a robust self-extinguishing PA6 UL94-V0 insulating body with brass conductive terminals to ensure dependable electrical performance in demanding environments. A removable transparent protective cover prevents accidental contact with live parts while allowing clear inspection of connections during maintenance.
Key Features
- 4-pole distribution block suitable for three-phase and neutral power systems.
- 160 A rated current for high-capacity industrial power distribution.
- 11 output terminals enabling flexible circuit branching.
- DIN rail mounting for quick installation in electrical cabinets.
- Self-extinguishing PA6 UL94-V0 insulation for improved electrical safety.
- Brass conductive terminals ensuring reliable electrical connections.
- Transparent removable protective cover preventing accidental contact.
- Halogen-free construction suitable for modern industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: RPQ1015
- Reference: RPQ 160-11
- Product type: 4-pole DIN rail distribution block
- Rated current (In): 160 A
- Number of outputs: 11 terminals
- Nominal insulation voltage (Ui): 1000 V
- Short-circuit withstand current (Icw): 9 kA (1 s)
- Peak short-circuit current (Ipk): 22 kA
- Input conductor size: 10 to 50 mm²
- Output conductor sizes: 10–35 mm² (large terminals) and 1.5–16 mm² (smaller terminals)
- Insulating body: PA6 UL94-V0, halogen-free
- Terminal material: Brass with galvanised steel screws
- Protection cover: Transparent PC UL94-V2
- Protection degree: IP10
- Mounting: DIN rail
- Maximum operating temperature: up to +85 °C
- Dimensions (L × H × P): 168 × 85 × 70 mm
- Weight: approx. 790 g
- Standard compliance: EN / IEC 60947-7-1
Typical Applications
- Three-phase power distribution in industrial switchboards.
- Electrical control panels and automation systems.
- Machine building and OEM electrical equipment.
- Distribution of phase and neutral circuits within electrical cabinets.
- Commercial and industrial electrical installations.
Frequently Asked Questions
What is the Teknomega RPQ1015 used for?
The RPQ1015 distribution block splits a three-phase and neutral electrical supply into multiple outgoing circuits inside industrial switchboards and electrical panels.
How many outputs does the RPQ1015 provide?
This model provides 11 output terminals, allowing several circuits to be connected from a single incoming supply.
Is the RPQ1015 suitable for DIN rail mounting?
Yes. The block is designed for quick installation onto standard DIN rails used in industrial electrical cabinets.
What cable sizes can be connected?
The input terminals accept conductors from 10 to 50 mm², while output terminals support conductor sizes ranging from 1.5 to 35 mm² depending on the terminal position.
Which standards does the RPQ1015 comply with?
The distribution block complies with EN / IEC 60947-7-1, the international standard covering terminal blocks used in low-voltage switchgear.
Trusted by Panel Builders
Teknomega RPQ distribution blocks are widely used by electrical engineers and panel builders for safe, compact and reliable power distribution in modern industrial switchboards.
| Manufacturer Part Number | RPQ1015 |
|---|---|
| Alternative Product SKU | RPQ 160-11 |
| Manufacturer | Teknomega |
| Barcode | 8053685372551 |
| HS Code | 85369095 |
| Amperage | 160A |
| Outputs | 11 Outputs |
| Number of Poles | 4 Pole |
| Packed Quantity | 1 |
