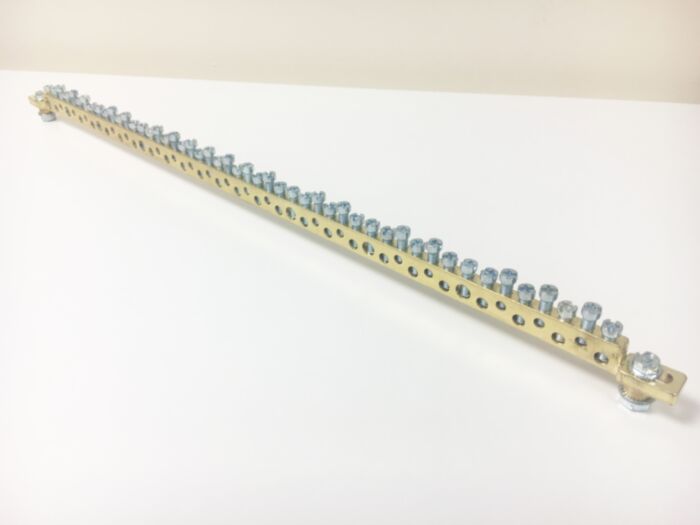

Teknomega MRS5000 - 50 Way Earth Bar 462mm M6 FIXING MRS13x6-50
MPN: MRS5000
Alt. SKU: MRS 13-6-50
Special Price
£19.62
£16.35
Regular Price
£26.16
Why Choose the Teknomega MRS5000 Earthing Terminal Bar?
The Teknomega MRS5000 is a heavy-duty brass earthing and neutral terminal bar designed to provide reliable grounding distribution within industrial switchboards, electrical panels and distribution boards. With 50 connection points and a solid 13 × 6 mm brass conductor bar, it enables multiple protective earth conductors to be connected to a single central grounding point.
Manufactured from high-conductivity brass, the MRS5000 ensures strong electrical continuity and mechanical durability for demanding electrical installations. It supports universal mounting options, allowing installation directly onto a panel chassis, onto copper busbars, or with spacers and extension connectors. The bar is supplied with M6 mounting hardware and M5 connection screws in galvanised steel for reliable installation.
Key Features
- 50-way brass earthing terminal bar for grounding and neutral distribution.
- High-conductivity brass construction ensuring reliable electrical performance.
- 13 × 6 mm brass bar providing strong current carrying capability.
- Universal fixing options including chassis, copper bar or spacer mounting.
- Supplied with M6 fixing screws and M5 terminal screws.
- Supports a wide range of conductor sizes for flexible wiring.
- 462 mm length suitable for large distribution panels.
- Designed for industrial switchboards and control cabinets.
Technical Specifications
- Manufacturer: Teknomega
- Model: MRS5000
- Reference: MRS 13-6-50
- Product type: Brass earthing / neutral terminal bar
- Rated current: 80 A
- Number of terminals: 50 connections
- Bar dimensions: 13 mm height × 6 mm width
- Length: 462 mm
- Material: High-conductivity brass (?27% IACS)
- Fixing screws: M6 mounting hardware
- Terminal screws: M5 galvanised steel screws
- Wire size ranges:
- 19 connections: 0.75 to 4 mm²
- 24 connections: 1.5 to 6 mm²
- 6 connections: 2.5 to 16 mm²
- 1 connection: 10 to 35 mm²
- Tightening torque: 1.5 – 2 Nm depending on terminal size
- Weight: approx. 0.353 kg
- Mounting options: chassis mounting, copper bar mounting, spacer mounting
Typical Applications
- Protective earth distribution inside industrial switchboards.
- Grounding connections in electrical distribution panels.
- Neutral or earth busbars in control cabinets.
- Machine building and OEM electrical equipment.
- Electrical installations requiring multiple grounding connections.
Frequently Asked Questions
What is the Teknomega MRS5000 used for?
The MRS5000 is a brass earthing terminal bar used to distribute protective earth or neutral conductors inside electrical panels and switchboards.
How many connections does the MRS5000 provide?
The earthing bar provides 50 terminal connections for distributing grounding conductors.
What material is the MRS5000 made from?
The bar is manufactured from high-conductivity brass, ensuring reliable electrical continuity and durability.
How is the MRS5000 mounted?
It supports universal mounting options including direct chassis mounting, fixing onto copper bars, or installation using spacers and extension connectors.
What cable sizes can be connected?
The terminals support conductor sizes ranging from approximately 0.75 mm² up to 35 mm² depending on the terminal hole size.
Trusted by Panel Builders
Teknomega earthing and neutral terminal bars are widely used by panel builders and electrical engineers to create safe, organised grounding systems within industrial electrical installations.
| Manufacturer Part Number | MRS5000 |
|---|---|
| Alternative Product SKU | MRS 13-6-50 |
| Manufacturer | Teknomega |
| Barcode | 8053685370533 |
| HS Code | 85369010 |
| Connections | 50 Way |
| Packed Quantity | 1 |
