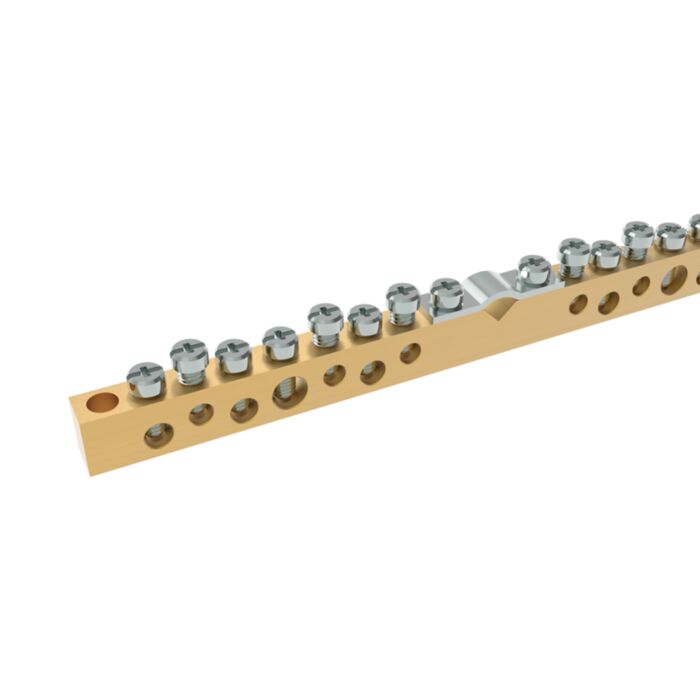

Teknomega MRS4000 14 Way Earth Bar 165mm
MPN: MRS4000
Alt. SKU: MRS 12X8-14
Special Price
£4.45
£3.71
Regular Price
£5.94
Why Choose the Teknomega MRS4000 Earthing Terminal Bar?
The Teknomega MRS4000 is a robust brass earthing and neutral terminal bar designed to provide a reliable grounding distribution point within industrial switchboards, electrical cabinets and control panels. With 14 connection points and a solid 12 × 8 mm brass conductor bar, it enables multiple protective earth conductors to be securely connected to a central grounding point within the panel.
The terminal bar features cable collar connections supporting conductors up to 25 mm², providing secure and efficient termination for earthing or neutral conductors. Through-hole fixing points at each end simplify mounting directly to the panel chassis or earth bar supports, while galvanised steel M5 connection screws ensure durable and reliable terminations.
Key Features
- 14-way brass earthing terminal bar for protective earth distribution.
- 12 × 8 mm brass conductor bar ensuring strong electrical conductivity.
- Cable collar input accepting conductors up to 25 mm².
- Multiple terminal sizes allowing flexible wiring configurations.
- Galvanised steel M5 terminal screws for secure conductor termination.
- Through-hole mounting ends for quick chassis installation.
- Compact 165 mm length suitable for electrical cabinets and switchboards.
- Designed for professional panel building and industrial electrical installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: MRS4000
- Reference: MRS 12×8-14
- Product type: Brass earthing / neutral terminal bar
- Material: High-conductivity brass
- Number of terminals: 14 connections
- Bar cross-section: 12 mm × 8 mm
- Length: approx. 165 mm
- Terminal screws: M5 galvanised steel
- Conductor capacity: up to 25 mm² via cable collar connection
- Hole configuration:
- Ø 7 mm holes (2): 4–16 mm² stripped / 2.5–16 mm² ferruled
- Ø 5.3 mm holes (6): 2.5–6 mm² stripped or ferruled
- Ø 4.5 mm holes (6): 1.5–4 mm² stripped / 0.75–4 mm² ferruled
- Tightening torque: approx. 1.5 Nm
- Mounting: chassis mounting via end fixing holes
- Weight: approx. 0.125 kg
Typical Applications
- Protective earth distribution inside industrial switchboards.
- Neutral or grounding connections within electrical panels.
- Machine control cabinets and automation enclosures.
- Electrical installations requiring organised earthing points.
- Panel building and OEM electrical equipment.
Frequently Asked Questions
What is the Teknomega MRS4000 used for?
The MRS4000 is a brass earthing terminal bar used to distribute protective earth or neutral conductors within electrical panels and switchboards.
How many connections does the MRS4000 provide?
The terminal bar provides 14 connection terminals for distributing grounding conductors.
What cable sizes can be connected?
The bar supports multiple conductor sizes depending on the terminal hole, ranging from approximately 0.75 mm² up to 16 mm², with cable collar entry supporting up to 25 mm².
What material is the MRS4000 made from?
The terminal bar is manufactured from high-conductivity brass and supplied with galvanised steel connection screws.
How is the MRS4000 mounted?
The bar includes through-hole fixing points at both ends, allowing direct installation onto a panel chassis or earthing support bracket.
Trusted by Panel Builders
Teknomega brass earthing and neutral terminal bars are widely used by electrical engineers and panel builders to create safe, organised grounding systems within industrial switchboards and control cabinets.
| Manufacturer Part Number | MRS4000 |
|---|---|
| Alternative Product SKU | MRS 12X8-14 |
| Manufacturer | Teknomega |
| Barcode | 8053685370502 |
| HS Code | 85389099 |
| Packed Quantity | 1 |
