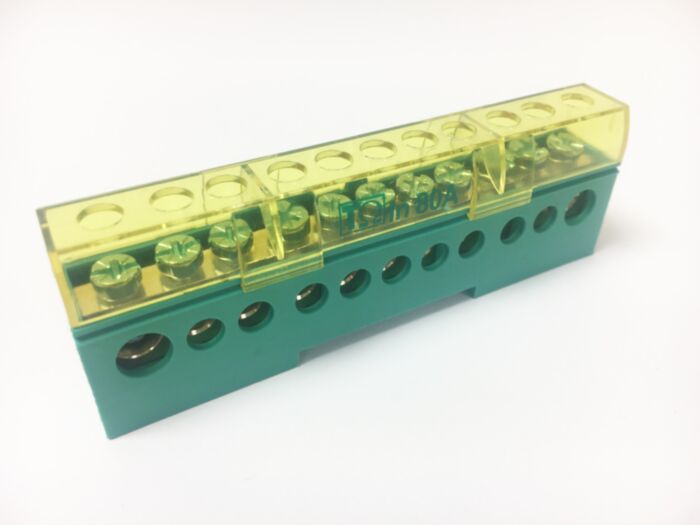

Teknomega ITB1035 - Omega Insulated 1 Pole Distribution Block 80A - 11 Way
MPN: ITB1035
Alt. SKU: ITB 80-11 G
Special Price
£4.06
£3.38
Regular Price
£5.41
Teknomega ITB1035 - Omega Insulated 1 Pole Distribution Block 80A - 11 Way is available to buy in increments of 5
Why Choose the Teknomega ITB1035 Distribution Terminal Block?
The Teknomega ITB1035 is a single-pole insulated distribution terminal block designed for safe electrical power distribution within industrial switchboards and control panels. Rated at 80 A and providing 11 connection terminals, it allows one incoming conductor to be distributed across multiple outgoing circuits while keeping panel wiring organised and accessible.
The block features a durable PA6 UL94-V0 self-extinguishing insulating body combined with a brass conductor block to ensure reliable electrical performance and long service life. A transparent polycarbonate protective cover protects against accidental contact with live terminals while allowing easy visual inspection during installation and maintenance.
Key Features
- Single-pole insulated distribution terminal block for panel power distribution.
- 80 A rated current suitable for industrial control panels and switchboards.
- 11 connection terminals enabling flexible circuit branching.
- DIN rail mounting for quick installation in electrical cabinets.
- PA6 UL94-V0 self-extinguishing housing improving electrical safety.
- Brass conductor block providing dependable electrical conductivity.
- Transparent PC protective cover allowing safe inspection of connections.
- Halogen-free construction designed for modern industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: ITB1035
- Reference: ITB 80-11 G
- Product type: 1-pole insulated distribution terminal block
- Rated current (In): 80 A
- Number of connections: 11 terminals
- Nominal insulation voltage (Ui): up to 1000 V
- Main conductor size: 4 to 16 mm² (2.5–16 mm² with ferrules)
- Secondary conductor size: 1.5 to 6 mm²
- Tightening torque: 2 Nm (main) / 1.5 Nm (secondary)
- Insulating body: PA6 UL94-V0 (available in grey, blue or green)
- Conductor block: Brass
- Cover: Transparent PC UL94-V0
- Protection degree: IP20
- Mounting: DIN rail or optional ITB2000 support
- Maximum operating temperature: +105 °C
- Dimensions: approx. 95 mm length
- Weight: approx. 0.07 kg
- Standards: EN / IEC 60947-7-1
Typical Applications
- Electrical power distribution inside industrial switchboards.
- Control panels and automation systems.
- Machine building and OEM electrical equipment.
- Neutral, earth or phase distribution points.
- Compact wiring distribution inside electrical cabinets.
Frequently Asked Questions
What is the Teknomega ITB1035 used for?
The ITB1035 is a single-pole distribution terminal block used to distribute an incoming electrical supply to multiple outgoing circuits inside industrial panels and switchboards.
How many connections does the ITB1035 provide?
The block provides 11 connection terminals, allowing efficient distribution of electrical power to several circuits.
Is the ITB1035 DIN rail mountable?
Yes. The terminal block mounts directly onto standard DIN rails and can also be installed using the optional ITB2000 support bracket.
What cable sizes can be connected?
The main terminals support conductors from approximately 4 to 16 mm², while secondary terminals accept wires from around 1.5 to 6 mm².
Which standards does the ITB1035 comply with?
The terminal block complies with EN / IEC 60947-7-1, covering terminal blocks used in low-voltage switchgear.
Trusted by Panel Builders
Teknomega insulated distribution terminal blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable wiring layouts inside modern industrial switchboards.
| Manufacturer Part Number | ITB1035 |
|---|---|
| Alternative Product SKU | ITB 80-11 G |
| Manufacturer | Teknomega |
| Barcode | 8050503319248 |
| HS Code | 73269098 |
| Amperage | 80A |
| Number of Poles | 1 pole |
| Connections | 11 Way |
| Packed Quantity | 5 |
