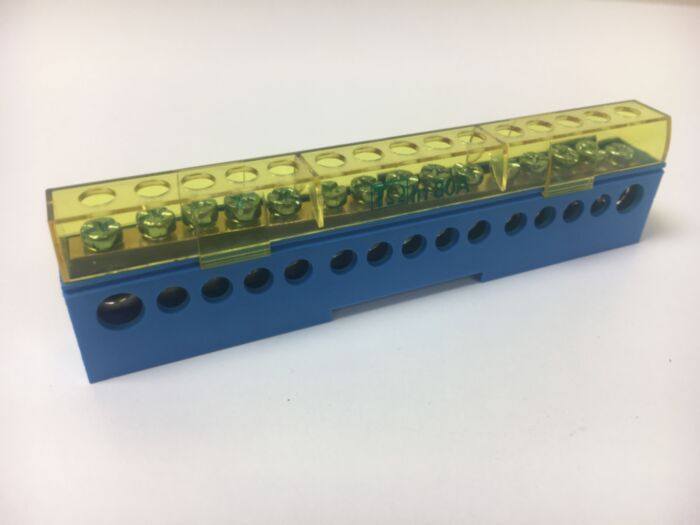

Teknomega ITB1025 - Omega Insulated 1 Pole Distribution Block 80A - 15 Ways

Why Choose the Teknomega ITB1025 Distribution Terminal Block?

The Teknomega ITB1025 is a compact single-pole insulated distribution terminal block designed for safe and organised electrical power distribution in industrial switchboards and control panels. Rated for 80 A with 15 connection terminals, it allows a single incoming conductor to distribute power efficiently to multiple outgoing circuits while maintaining a clean and structured panel layout.

The block is constructed using a durable PA6 UL94-V0 self-extinguishing insulating body combined with a brass conductor block to ensure reliable electrical performance and long service life. A transparent polycarbonate protective cover helps prevent accidental contact with live parts while allowing visual inspection of wiring during installation and maintenance.

Key Features

• Single-pole insulated distribution terminal block for compact panel wiring.
• 80 A rated current suitable for industrial switchboards and control cabinets.
• 15 connection terminals enabling flexible circuit distribution.
• DIN rail mounting for fast installation inside electrical cabinets.
• PA6 UL94-V0 self-extinguishing housing improving electrical safety.
• Brass conductor block providing reliable electrical conductivity.
• Transparent PC protective cover allowing inspection of connections.
• Halogen-free construction suitable for industrial installations.

Technical Specifications

• Manufacturer: Teknomega
• Model: ITB1025
• Reference: ITB 80-15 B
• Product type: 1-pole insulated distribution terminal block
• Rated current (In): 80 A
• Number of connections: 15 terminals
• Nominal insulation voltage (Ui): up to 1000 V
• Main conductor size: 4 to 16 mm² (2.5–16 mm² with ferrules)
• Secondary conductor size: 1.5 to 6 mm²
• Tightening torque: 2 Nm (main) / 1.5 Nm (secondary)
• Insulating body: PA6 UL94-V0 (RAL 7035 grey, RAL 5012 blue or RAL 6024 green)
• Conductor block: Brass
• Cover: Transparent yellow PC UL94-V0
• Protection degree: IP20
• Mounting: DIN rail or ITB2000 support
• Operating temperature: up to +105 °C
• Dimensions: approx. 125 mm length × 31 mm height × 15 mm width
• Weight: approx. 0.094 kg
• Standards: EN / IEC 60947-7-1

Typical Applications

• Electrical power distribution inside industrial switchboards.
• Control panels and automation systems.
• Machine building and OEM electrical equipment.
• Neutral or phase distribution points.
• Compact wiring distribution inside electrical cabinets.

Trusted by Panel Builders

Teknomega insulated distribution terminal blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable wiring layouts inside modern industrial switchboards.
