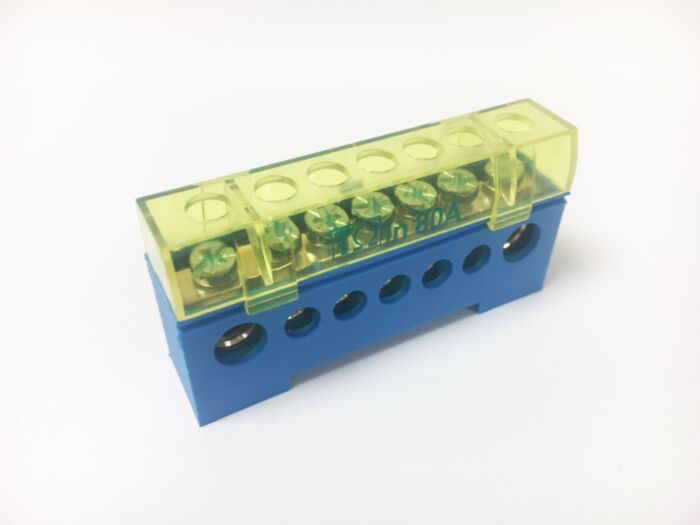

Teknomega ITB1015 - Omega Insulated 1 Pole Distribution Block 80A - 7 Ways
MPN: ITB1015
Alt. SKU: ITB 80-7 B
Special Price
£2.90
£2.42
Regular Price
£3.86
Why Choose the Teknomega ITB1015 Distribution Terminal Block?
The Teknomega ITB1015 is a compact single-pole insulated distribution terminal block designed for safe and organised electrical power distribution inside industrial switchboards and control panels. Rated for 80 A with 7 connection points, it enables a single incoming conductor to distribute power efficiently to multiple outgoing circuits while maintaining a tidy wiring layout.
The block uses a robust PA6 UL94-V0 self-extinguishing insulating body with a brass conductor block to ensure dependable electrical performance and long-term durability. A transparent polycarbonate protective cover protects against accidental contact with live terminals while allowing visual inspection of wiring during installation and maintenance.
Key Features
- Single-pole insulated distribution terminal block for compact panel wiring.
- 80 A rated current suitable for industrial switchboards and control cabinets.
- 7 connection terminals enabling efficient circuit distribution.
- DIN rail mounting for fast installation inside electrical panels.
- PA6 UL94-V0 self-extinguishing housing improving electrical safety.
- Brass conductor block providing reliable electrical conductivity.
- Transparent PC protective cover allowing inspection of connections.
- Halogen-free construction designed for industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: ITB1015
- Reference: ITB 80-7 B
- Product type: 1-pole insulated distribution terminal block
- Rated current (In): 80 A
- Number of connections: 7 terminals
- Nominal insulation voltage (Ui): 1000 V AC/DC
- Main conductor size: 4 to 16 mm² (2.5–16 mm² with ferrules)
- Secondary conductor size: 1.5 to 6 mm²
- Tightening torque: 2 Nm (main) / 1.5 Nm (secondary)
- Insulating body: PA6 UL94-V0 (RAL 7035 grey, RAL 5012 blue or RAL 6024 green)
- Conductor block: Brass
- Cover: Transparent yellow PC UL94-V0
- Protection degree: IP20
- Mounting: DIN rail or ITB2000 support
- Operating temperature: up to +105 °C
- Length: approx. 63 mm
- Standards: EN / IEC 60947-7-1
Typical Applications
- Electrical distribution inside industrial switchboards.
- Control panels and automation systems.
- Machine building and OEM electrical equipment.
- Phase, neutral or protective conductor distribution points.
- Compact wiring distribution inside electrical cabinets.
Frequently Asked Questions
What is the Teknomega ITB1015 used for?
The ITB1015 is a single-pole distribution terminal block used to distribute one incoming electrical supply to several outgoing connections inside electrical panels or switchboards.
How many connections does the ITB1015 provide?
The terminal block provides 7 connection terminals allowing multiple circuits to be connected from one incoming conductor.
Is the ITB1015 DIN rail mountable?
Yes. The block is designed for direct installation on standard DIN rails or can be mounted using the optional ITB2000 support accessory.
What cable sizes can be connected?
The main terminals support conductors from approximately 4 to 16 mm², while smaller terminals accept wires from around 1.5 to 6 mm².
Which standards does the ITB1015 comply with?
The terminal block complies with EN / IEC 60947-7-1, covering terminal blocks used in low-voltage switchgear.
Trusted by Panel Builders
Teknomega insulated distribution terminal blocks are widely used by electrical engineers and panel builders to create safe, organised and reliable wiring layouts inside modern industrial switchboards.
| Manufacturer Part Number | ITB1015 |
|---|---|
| Alternative Product SKU | ITB 80-7 B |
| Manufacturer | Teknomega |
| Barcode | 8050503319200 |
| HS Code | 73269098 |
| Amperage | 80A |
| Number of Poles | 1 pole |
| Connections | 7 Way |
| Packed Quantity | 1 |
