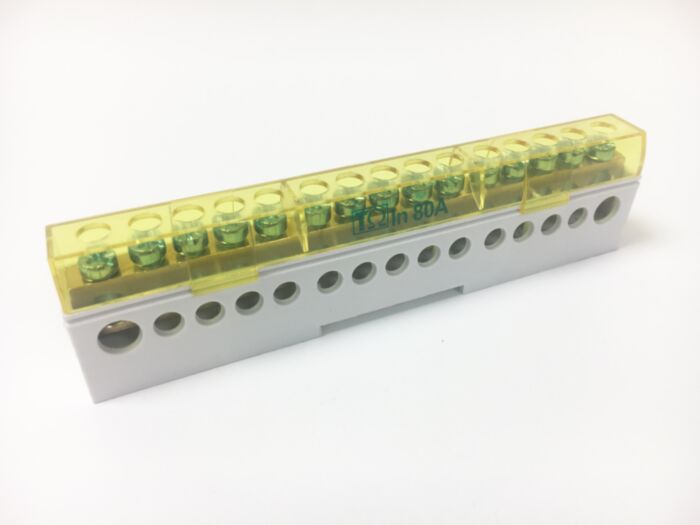

Teknomega ITB1010 - Omega Insulated 1 Pole Distribution Block 80A - 15 Ways
MPN: ITB1010
Alt. SKU: ITB 80-15 W
Special Price
£5.22
£4.35
Regular Price
£6.96
Why Choose the Teknomega ITB1010 Distribution Terminal Block?
The Teknomega ITB1010 is a compact single-pole insulated distribution terminal block designed for safe and organised electrical power distribution within industrial switchboards and control panels. Rated for 80 A and providing 15 connection points, it allows a single incoming conductor to distribute power to multiple outgoing circuits while maintaining a clean and efficient wiring layout.
The terminal block features a robust PA6 UL94-V0 self-extinguishing insulating body combined with a brass conduction block for reliable electrical conductivity and mechanical durability. A transparent polycarbonate protective cover protects users from accidental contact with live terminals while allowing easy visual inspection of connections during installation and maintenance.
Key Features
- Single-pole insulated distribution terminal block for compact electrical distribution.
- 80 A rated current suitable for control panels and switchboards.
- 15 connection terminals enabling flexible circuit branching.
- DIN rail mounting for fast installation in electrical cabinets.
- Self-extinguishing PA6 UL94-V0 housing for enhanced electrical safety.
- Brass conductor block ensuring reliable electrical conductivity.
- Transparent PC protective cover allowing inspection of wiring connections.
- Halogen-free construction suitable for modern industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: ITB1010
- Reference: ITB 80-15 W
- Product type: 1-pole insulated distribution terminal block
- Rated current (In): 80 A
- Number of connections: 15 terminals
- Nominal insulation voltage (Ui): 1000 V
- Main conductor size: 4 to 16 mm² (2.5–16 mm² with ferrules)
- Secondary conductor size: 1.5 to 6 mm²
- Insulating body: PA6 UL94-V0 (RAL 7035 grey, RAL 5012 blue or RAL 6024 green)
- Conductor block: Brass
- Cover: Transparent yellow PC UL94-V0
- Protection degree: IP20
- Mounting: DIN rail or ITB2000 support
- Maximum operating temperature: +105 °C
- Length: approx. 125 mm
- Standard compliance: EN / IEC 60947-7-1
Typical Applications
- Electrical distribution inside industrial switchboards.
- Control panels and automation systems.
- Machine building and OEM electrical equipment.
- Phase, neutral or protective conductor distribution points.
- Compact power branching inside electrical cabinets.
Frequently Asked Questions
What is the Teknomega ITB1010 used for?
The ITB1010 is a single-pole distribution terminal block used to distribute an incoming electrical supply to multiple outgoing connections inside electrical panels or switchboards.
How many connections does the ITB1010 provide?
The terminal block provides 15 connection terminals, enabling efficient power distribution to multiple circuits.
Is the ITB1010 DIN rail mountable?
Yes. The block is designed for direct installation on standard DIN rails or can be mounted using the optional ITB2000 support accessory.
What cable sizes can be connected?
The main input terminals support conductors from approximately 4 to 16 mm², while smaller terminals accept wires from about 1.5 to 6 mm².
Which standards does the ITB1010 comply with?
The terminal block complies with EN / IEC 60947-7-1, the international standard covering terminal blocks used in low-voltage switchgear.
Trusted by Panel Builders
Teknomega insulated distribution blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable wiring layouts inside industrial electrical cabinets.
| Manufacturer Part Number | ITB1010 |
|---|---|
| Alternative Product SKU | ITB 80-15 W |
| Manufacturer | Teknomega |
| Barcode | 8050503319194 |
| HS Code | 73269098 |
| Amperage | 80A |
| Number of Poles | 1 pole |
| Connections | 15 Way |
| Packed Quantity | 1 |
