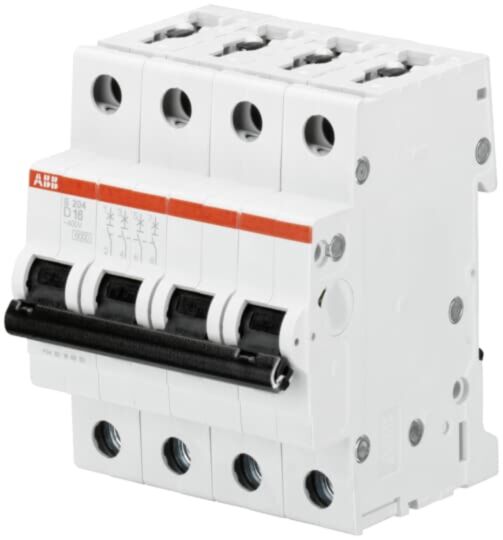

S204-D63 Miniature Circuit Breaker - 4P - D - 63 A
MPN: 2CDS254001R0631
Alt. SKU: S204D63
Special Price
£158.51
£132.09
Regular Price
£288.19
Why Choose the S204-D63 [2CDS254001R0631]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanic tripping for overload and short circuit protection.
- Voltage Rating: Up to 440 V AC, suitable for 230/400 V AC systems.
- Current Rating: Rated currents up to 63 A, model S204-D63 rated at 63 A.
- Contact Configuration: 4 poles (4P).
- Breaking Capacity: Ultimate up to 20 kA (230 V AC) and 10 kA (400/440 V AC); Service up to 15 kA (230 V AC) and 7.5 kA (400/440 V AC).
- Terminal Type and Size Range: Screw terminals with connection capacity for flexible and rigid conductors 0.75 to 35 mm²; busbar 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 mechanical cycles and 10,000 AC electrical cycles.
- Actuator: Black, sealable insulation group II with I/O marking and red/green contact position indication.
- Tightening Torque: 2.8 N·m (standard), 18 in·lb (UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the System pro M compact S200 miniature circuit breakers?
They are current limiting miniature circuit breakers providing overload and short circuit protection through thermal and electromechanic tripping mechanisms.
What are the available configurations for the S200 MCBs?
The S200 MCBs are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200 MCBs?
The ultimate breaking capacity is up to 20 kA at 230 V AC and 10 kA at 400/440 V AC.
What is the rated current for the S204-D63 model?
The S204-D63 model has a rated current of 63 A.
What is the terminal size range for the S200 MCBs?
The screw terminals accommodate flexible and rigid conductors from 0.75 to 35 mm², and busbars of 10/10 mm².
How many mechanical and electrical cycles can the S200 MCBs endure?
They can endure 20,000 mechanical cycles and 10,000 AC electrical cycles.
Are the S200 MCBs compliant with any standards?
Yes, they comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS254001R0631 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779552103 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 63A |
| Alternative Product SKU | S204D63 |
