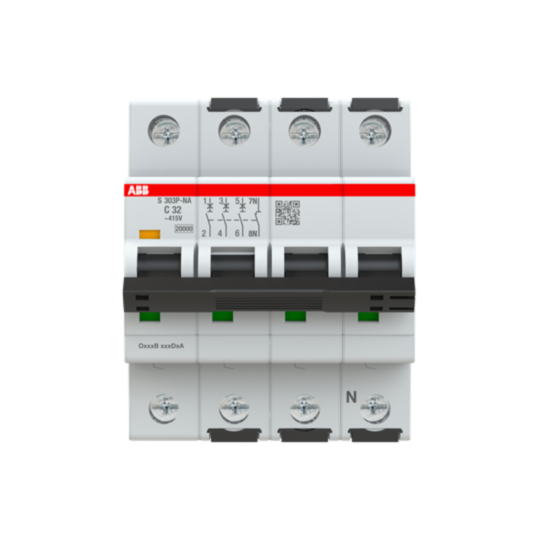

2CDS383103R0324 ABB S303P-C32NA Miniature Circuit Breaker - 3+NP - C - 32 A
MPN: 2CDS383103R0324
Alt. SKU: S303P-C32NA
Special Price
£108.54
£90.45
Regular Price
£197.35
This product replaces this item:
Why Choose the S303P-C32NA [2CDS383103R0324]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Industrial MCB for protection against overload and short circuits.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 415 V AC, 15 kA at 440 V AC.
- Poles: 3P+N with neutral terminals positioned on the right.
- Maximum Operating Voltage: 480Y/277 V AC, 125 V DC.
- Terminal Type and Capacity: Screw terminals; flexible and rigid conductors 0.75–35 mm², busbar 10/10 mm².
- Electrical Endurance: 10,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Actuator Type: Toggle with red ON / green OFF contact position indication.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 415 V AC and 15 kA at 440 V AC.
What is the maximum operating voltage for this MCB?
The maximum operating voltage is 480Y/277 V AC and 125 V DC.
What is the terminal capacity for the MCB?
The terminal type is screw terminals, with a capacity for flexible and rigid conductors from 0.75 to 35 mm² and busbar of 10/10 mm².
How many poles does the MCB have?
The MCB has 3 poles plus a neutral (3P+N) with neutral terminals positioned on the right.
What is the electrical endurance of the MCB?
The electrical endurance is rated at 10,000 AC cycles.
What standards does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0324 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077071 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 32A |
| Alternative Product SKU | S303P-C32NA |
