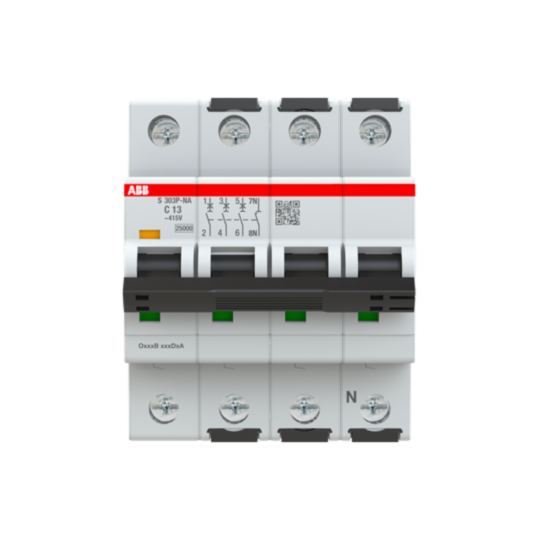

2CDS383103R0134 ABB S303P-C13NA Miniature Circuit Breaker - 3+NP - C - 13 A
MPN: 2CDS383103R0134
Alt. SKU: S303P-C13NA
Special Price
£96.01
£80.01
Regular Price
£174.56
This product replaces this item:
Why Choose the S303P-C13NA [2CDS383103R0134]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Voltage Ratings: Rated ultimate short-circuit breaking capacity 25 kA at 415 V AC/400 V and 15 kA at 440 V AC.
- Contact Configuration: 3 poles + neutral (3P+N) with red ON / green OFF indication.
- Terminal Type and Size: Screw terminals supporting busbar 10/10 mm², flexible cables 0.75–25 mm², rigid/stranded cables 0.75–35 mm².
- Insulation and Endurance: Actuator insulation group II; electrical endurance 20,000 AC cycles, mechanical endurance 20,000 cycles.
- Tightening Torque: 2.8 N·m (standard), 18 in·lb (UL/CSA).
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Actuator Type: Toggle with I/O marking, black and sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the voltage ratings for the MCBs S300P series?
The rated ultimate short-circuit breaking capacity is 25 kA at 415 V AC/400 V and 15 kA at 440 V AC.
What is the terminal type and cable capacity for this product?
The MCB supports screw terminals for busbar 10/10 mm², flexible cables 0.75–25 mm², and rigid/stranded cables 0.75–35 mm².
How is the actuator of the MCBs S300P series designed?
The actuator is a toggle type with I/O marking, black in colour, and can be sealed.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
What tightening torque is required for the terminals?
The standard tightening torque is 2.8 N·m (18 in·lb for UL/CSA).
What standards does the MCBs S300P series comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0134 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779135658 |
| Product Image | For Illustration Purposes Only |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 13A |
| Alternative Product SKU | S303P-C13NA |
