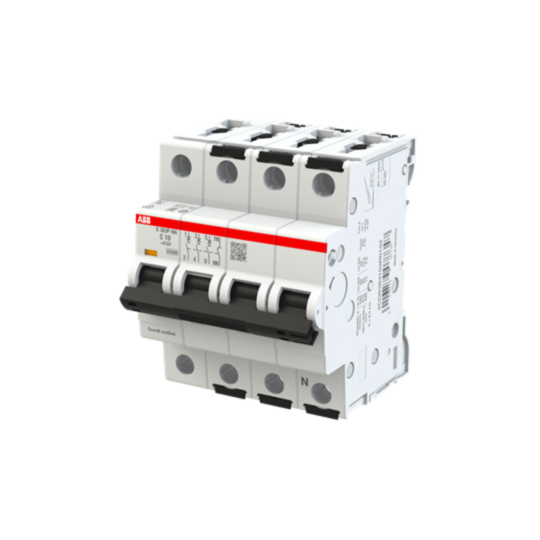

2CDS383103R0104 ABB S303P-C10NA Miniature Circuit Breaker - 3+NP - C - 10 A
MPN: 2CDS383103R0104
Alt. SKU: S303P-C10NA
Special Price
£83.51
£69.59
Regular Price
£151.84
This product replaces this item:
Why Choose the S303P-C10NA [2CDS383103R0104]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 415 V AC and 400 V; 15 kA at 440 V AC.
- Voltage Rating: Maximum operating voltage 480Y/277 V AC, 125 V DC (UL/CSA).
- Contact Configuration: 3 poles + neutral (3P+N) with red ON / green OFF contact position indication.
- Insulation and Dielectric Test: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute; actuator made from Insulation Group II material.
- Terminal Type and Capacity: Screw terminals with busbar 10/10 mm², flexible conductors 0.75–25 mm², rigid conductors 0.75–35 mm² (failsafe bi-directional cylinder-lift terminals).
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Tightening Torque: 2.8 N·m (standard), 18 in-lb (UL/CSA).
- Installation Size: 1 DIN module (DIN 43880).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 415 V AC and 400 V; 15 kA at 440 V AC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC and 125 V DC (UL/CSA).
What type of terminal does the MCBs S300P series use?
It uses screw terminals with busbar for 10/10 mm², flexible conductors from 0.75–25 mm², and rigid conductors from 0.75–35 mm².
How many poles does the MCBs S300P series have?
The MCBs S300P series has a contact configuration of 3 poles + neutral (3P+N).
What is the installation size of the MCBs S300P series?
The installation size is 1 DIN module (DIN 43880).
What standards does the MCBs S300P series comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0104 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077347 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 10A |
| Alternative Product SKU | S303P-C10NA |
