2CDS383001R0164 ABB S303P-C16 Miniature Circuit Breaker - 3P - C - 16 A
MPN: 2CDS383001R0164
Alt. SKU: S303P-C16
Special Price
£68.38
£56.98
Regular Price
£124.32
This product replaces this item:
Why Choose the S303P-C16 [2CDS383001R0164]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Voltage Rating: 400/415 V AC, 440 V AC; Maximum operating voltage UL/CSA 125 V DC / 480Y/277 V AC.
- Short-Circuit Breaking Capacity: 25 kA (400/415 V AC), 15 kA (440 V AC).
- Poles: 3P (three poles) with 3 protected poles.
- Contact Position Indication: Red ON / Green OFF.
- Terminal Type and Capacity: Failsafe bi-directional screw terminals; busbar up to 10 mm², flexible up to 25 mm², rigid up to 35 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
- Actuator: Toggle type, black insulated, sealable with I/O markings.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the voltage ratings for the MCBs S300P series?
The voltage ratings are 400/415 V AC, 440 V AC; with a maximum operating voltage of 125 V DC / 480Y/277 V AC.
What is the short-circuit breaking capacity of the MCBs S300P series?
The short-circuit breaking capacity is 25 kA at 400/415 V AC and 15 kA at 440 V AC.
How many poles does the MCBs S300P series have?
The MCBs S300P series has 3 poles, with 3 protected poles.
What is the terminal capacity for the MCBs S300P series?
The terminal type is failsafe bi-directional screw terminals, with busbar capacity up to 10 mm², flexible up to 25 mm², and rigid up to 35 mm².
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
Is there any conformity information available for the MCBs S300P series?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383001R0164 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078054 |

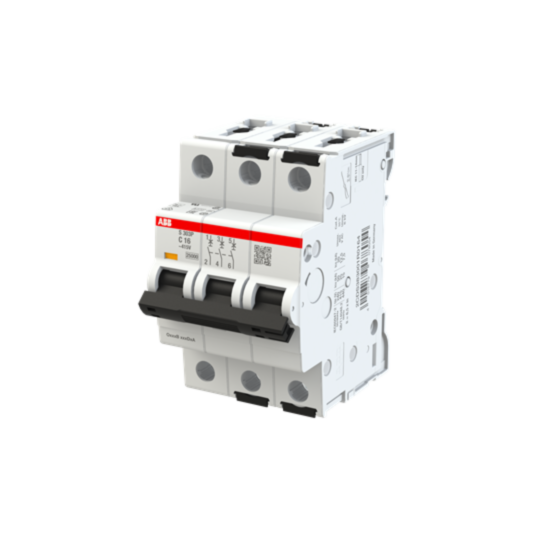

| Product Image | For Illustration Purposes Only |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 16A |
| Alternative Product SKU | S303P-C16 |
