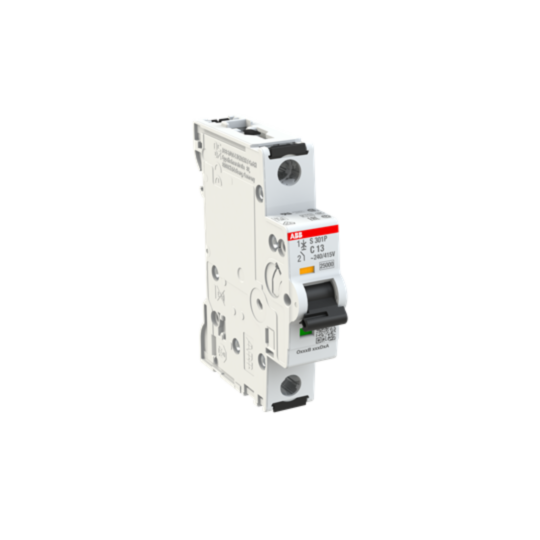

2CDS381001R0134 ABB S301P-C13 Miniature Circuit Breaker - 1P - C - 13 A
MPN: 2CDS381001R0134
Alt. SKU: S301P-C13
Special Price
£22.62
£18.85
Regular Price
£41.12
This product replaces this item:
Why Choose the S301P-C13 [2CDS381001R0134]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker for protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 240 V AC, 230 V AC, and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 12.5 kA at 240 V AC and 72 V DC.
- Operating Voltage: Maximum 480Y/277 V AC (UL/CSA).
- Poles: Single pole (1P) with one protected pole.
- Terminal Type and Capacity: Screw terminals; Busbar 10/10 mm², flexible 0.75–25 mm², rigid up to 35 mm².
- Contact Position Indication: Red ON / Green OFF.
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Dielectric Test Voltage: 2 kV at 50/60 Hz, 1 minute.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCBs S300P series?
The MCBs S300P series is designed for protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 240 V AC, 230 V AC, and 72 V DC.
What is the maximum operating voltage for this circuit breaker?
The maximum operating voltage is 480Y/277 V AC (UL/CSA).
What is the terminal type and capacity for the MCBs S300P?
The MCBs S300P features screw terminals with a busbar capacity of 10/10 mm², flexible capacity of 0.75–25 mm², and rigid capacity up to 35 mm².
How many poles does the MCBs S300P have?
The MCBs S300P has a single pole (1P) with one protected pole.
What is the mechanical and electrical endurance of the MCBs S300P?
The mechanical and electrical endurance is rated for 20,000 cycles each.
What standards does the MCBs S300P comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0134 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080491 |
| Product Image | For Illustration Purposes Only |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 13A |
| Alternative Product SKU | S301P-C13 |
