Teknomega RPU2995 - Omega Unipolar 1 Pole Distribution Block 80A 6 Outputs
MPN: RPU2995
Alt. SKU: RPU 80-6
Special Price
£6.79
£5.66
Regular Price
£9.70

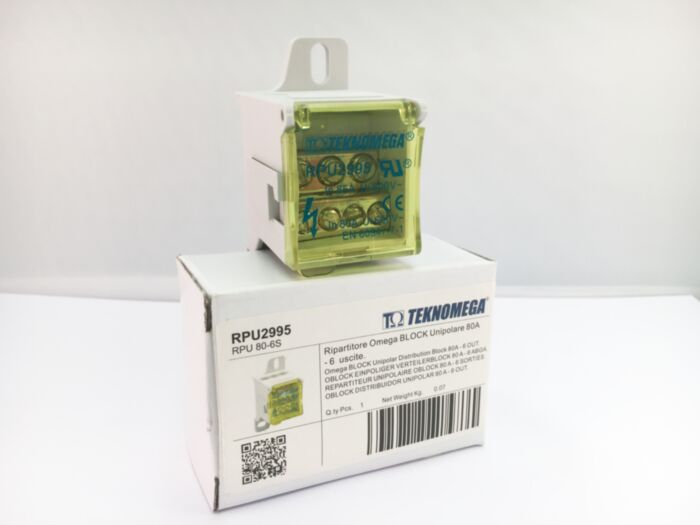

Teknomega RPU2995 Unipolar Distribution Block (RPU 80‑6 S)
The Teknomega RPU2995 (also known as RPU 80‑6 S) is a compact single‑pole distribution block rated for up to 80 A IEC/EN or 85 A UL. It features six output terminals and a nominal insulation voltage of 600 V AC. Its halogen‑free PA 6 housing (UL 94‑V0) with removable transparent PC cover (UL 94‑V2) ensures both reliability and safe visual inspection. The device mounts directly on DIN‑rail, conforms to EN 60947‑7‑1 and is UL 1059-recognised.
Technical Specifications
- Model: RPU2995 (RPU 80‑6 S)
- Rated Current: 80 A (IEC/EN), 85 A (UL)
- Poles / Outputs: 1‑pole, 6 outputs
- Nominal Insulation Voltage (Ui): 600 V AC
- Input Wire Range: 6–16 mm² (strip or ferruled)
- Output Wire Range: Four outputs: 2.5–6 mm²; two outputs: 2.5–16 mm² ferruled
- Short‑Circuit Rating: Icw ≈ 3 kA, Ipk ≈ 22 kA (1 s)
- Dimensions (A×B×C): 66 × 30 × 46 mm; fixing‑hole spacing 54 mm
- Weight: ≈ 0.071 kg
- Materials: PA 6 UL 94‑V0 housing, tinned copper conductor body, galvanised steel or aluminium clamps and screws, transparent PC cover UL 94‑V2, halogen‑free
- Protection Rating: IP20B with DIN‑rail quick‑hook configuration
- Operating Temperature: Continuous use to +85 °C
- Standards & Compliance: Fully compliant with EN 60947‑7‑1; UL 1059 recognised; CE marking
Frequently Asked Questions
- Is the RPU2995 rated for AC applications up to 600 V?
- What cable sizes fit the input and output terminals of RPU2995?
- What is the short‑circuit current rating of the RPU2995?
- How many output terminations does RPU2995 have?
- How do I mount the RPU2995 on DIN‑rail?
Yes — the RPU2995 carries a nominal insulation voltage rating of 600 V AC and is UL‑recognised, making it suitable for standard industrial AC applications.
The input accepts 6–16 mm² copper conductors (strip or ferruled). Output terminal capacities include two outputs at 2.5–16 mm² and four outputs at 2.5–6 mm², compatible with ferruled conductors.
The block withstands a 1‑second short‑circuit current (Icw) of approximately 3 kA and a peak current (Ipk) of around 22 kA, in line with EN 60947‑7‑1 requirements.
The RPU2995 provides six output terminals — two for larger cables and four for smaller conductors, enabling flexible distribution.
The distribution block features a quick‑hook mechanism for snap-fitting onto a standard DIN‑rail. It may also be surface-mounted using the specified fixing-hole spacing (~54 mm).
| Manufacturer Part Number | RPU2995 |
|---|---|
| Alternative Product SKU | RPU 80-6 |
| Manufacturer | Teknomega |
| Barcode | 8053685372643 |
| HS Code | 85369095 |
| Amperage | 80A |
| Outputs | 6 Outputs |
| Number of Poles | 1 pole |
| Packed Quantity | 1 |
