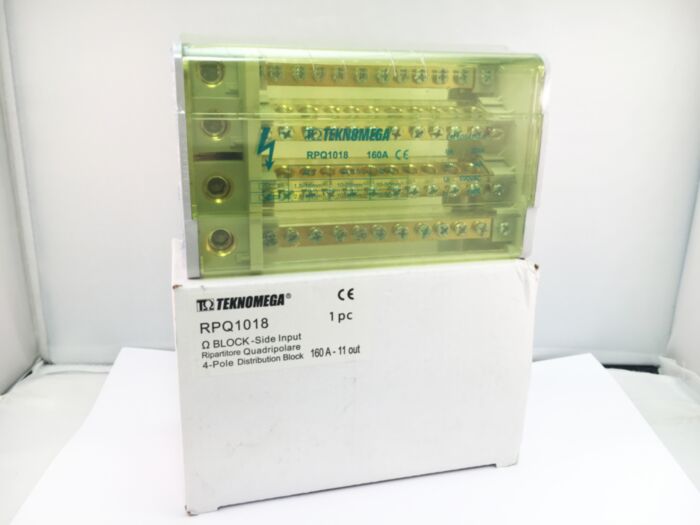

Why Choose the Teknomega RPQ1018 4-Pole 160A/16 Output Distribution Block?
The Teknomega RPQ1018 4-Pole Distribution Block is engineered for high-capacity, safe, and flexible power distribution in commercial and industrial panels. With 4 isolated poles, a 160A current rating per pole, and 16 outputs, it is ideal for multi-circuit three-phase and neutral installations.
Key Takeaways
4 poles, each rated at 160A
1 input per pole (Ø11.5 mm)
16 outputs: 4 x Ø8.5 mm, 12 x Ø7 mm
Insulation voltage: 600V; short-circuit withstand: 9 kA (1s), 22 kA peak
Quick DIN rail mounting, 245 x 105 x 55 mm
Removable transparent protective cover
Compliant with EN 60947-7-1
Frequently Asked Questions About the Teknomega RPQ1018 Distribution Block
The RPQ1018 is designed for complex power distribution tasks, providing 16 output connections from four 160A-rated poles. Its modular design and varied output sizes (8.5 mm and 7 mm) suit a wide range of circuit requirements. Flame-retardant, halogen-free PA6 construction, brass conductors, and a transparent, removable PC cover ensure durability, safety, and compliance.
Quick DIN rail mounting and a generous layout make this block perfect for high-density distribution in demanding panels and switchgear.
Speed & Safety Benefits
Quick DIN rail mounting for rapid panel installation
Removable transparent cover for safe, visible access
High short-circuit withstand: 9 kA (1s), 22 kA peak
Fully isolated poles for multi-phase safety
Key Features of the Teknomega RPQ1018 Distribution Block
Product Type: Modular distribution block
Poles: 4
Current Rating: 160A
Inputs: 4 x Ø11.5 mm
Outputs: 4 x Ø8.5 mm, 12 x Ø7 mm
Insulation Voltage: 600V
Short-Circuit Withstand: 9 kA (1s), 22 kA peak
Dimensions: 245 x 105 x 55 mm
Body: PA6, UL 94-V0 (grey, halogen-free)
Cover: Transparent yellow PC, UL 94-V2
Conductor: Brass; Screws: Galvanized steel
Mounting: Quick DIN rail hook-up
Standards: EN 60947-7-1
16 outputs: 4 with 8.5 mm diameter holes, 12 with 7 mm holes, distributed across 4 poles.
245 mm (length) x 105 mm (height) x 55 mm (depth); fixing hole spacing: 232 mm.
Quick DIN rail mounting; fixing holes for alternative secure panel mounting.
Yes, fully compliant with EN 60947-7-1 for low-voltage switchgear and controlgear.
Choose the Teknomega RPQ1018 4-Pole 160A Distribution Block for high-density, safe, and flexible power distribution in demanding industrial and commercial environments.
