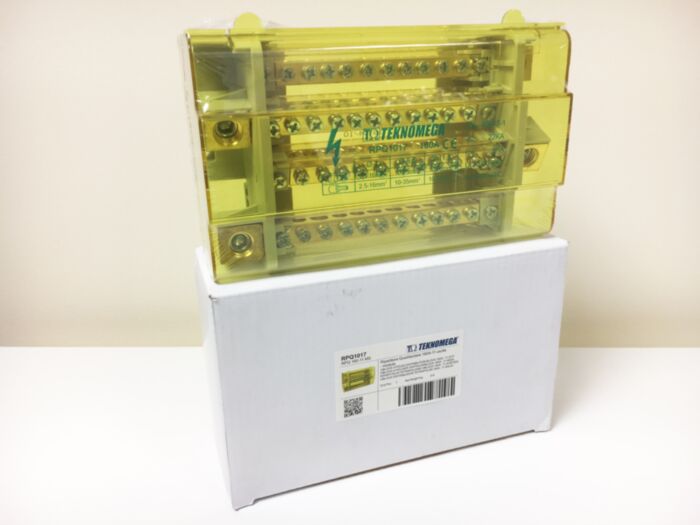

Why Choose the Teknomega RPQ1017 4-Pole 160A/11 Output Distribution Block?
The Teknomega RPQ1017 4-Pole Distribution Block is engineered for safe, high-capacity power distribution in commercial and industrial panels. With a 160A current rating, 4 isolated poles, and 11 outputs, it delivers maximum flexibility and reliability for three-phase and neutral circuits.
Key Takeaways
4 poles, each rated 160A
1 input per pole (Ø11.5 mm)
11 outputs: 3 x Ø8.5 mm, 8 x Ø7 mm
Insulation voltage: 600V; short-circuit: 9 kA (1s), 22 kA peak
Quick DIN rail mounting, 176 x 105 x 55 mm
Transparent removable protective cover
Complies with EN 60947-7-1
Frequently Asked Questions About the Teknomega RPQ1017 Distribution Block
The RPQ1017 is designed for distributing power in multi-phase systems, offering 11 output connections from four 160A-rated poles. Its modular construction, PA6 V0 body, and transparent cover allow for safe, organized wiring in modern power panels. Brass conductors and galvanized steel screws ensure durability and superior conductivity.
The block features quick hook-up on DIN rails, halogen-free and flame-retardant insulation, and space-saving modular depth—making it ideal for demanding installations.
Speed & Safety Benefits
Rapid DIN rail mounting for quick installation
Removable cover for safe access and inspection
Isolated poles for secure multi-phase splitting
High short-circuit withstand (9 kA for 1s, 22 kA peak)
Key Features of the Teknomega RPQ1017 Distribution Block
Product Type: Modular distribution block
Poles: 4
Current Rating: 160A
Inputs: 4 x Ø11.5 mm
Outputs: 3 x Ø8.5 mm, 8 x Ø7 mm
Insulation Voltage: 600V
Short-Circuit Withstand: 9 kA (1s), 22 kA peak
Dimensions: 176 x 105 x 55 mm
Body: PA6, UL 94-V0 (grey)
Cover: Transparent yellow PC, UL 94-V2
Conductor: Brass; Screws: Galvanized steel
Mounting: Quick DIN rail hook-up
Standards: EN 60947-7-1
Each block provides 11 outputs in total: 3 with 8.5 mm holes and 8 with 7 mm holes, distributed across 4 poles.
176 mm (length) x 105 mm (height) x 55 mm (depth); fixing hole spacing: 163 mm.
Quick DIN rail mounting for easy integration into panels; screw holes for alternative fixing if required.
Yes, the RPQ1017 complies with EN 60947-7-1 for low-voltage switchgear and controlgear.
Choose the Teknomega RPQ1017 4-Pole 160A Distribution Block for safe, flexible, and standards-compliant multi-circuit power distribution in demanding industrial and commercial panels.

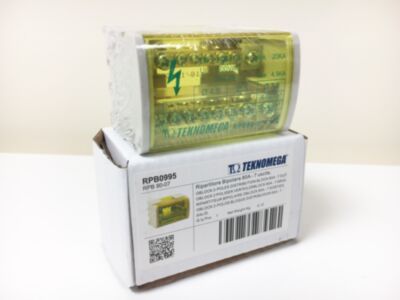

Teknomega RPB0995 - Omega 2 Pole Distribution Block 80A 7 OuputsSpecial Price £6.48 £5.40 Regular Price £9.25
