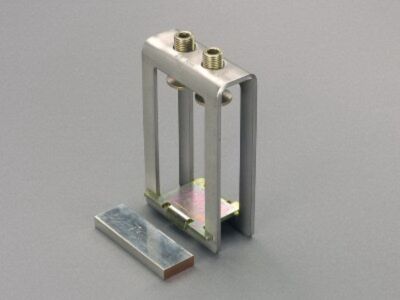

01008 Wohner profile terminal
MPN: 01008
Alt. SKU: 01008000
Special Price
£125.36
£104.47
Regular Price
£156.71
Why Choose the 01008 Wohner Profile Terminal?
The 01008 Wohner Profile Terminal is engineered for heavy–current distribution in industrial control panels. It clips securely onto Wohner double–T busbar profiles and accommodates conductors from 500 mm² to 1260 mm² within a 64 × 23–45 mm terminal footprint. Its spring–loaded clamp delivers low–resistance, vibration–resistant connections, enabling tool–free installation and rapid circuit tapping for power lines up to 1 300 A.
Key Features
- Secure spring–loaded clamp for conductor sizes 500–1260 mm²
- Tool–free installation on Wohner busbar profiles
- Low–resistance, vibration–resistant connection
- Touch–safe design with IP20 protection
- Compatible with systems up to 690 V AC
Frequently Asked Questions
- What current ratings do these Wohner busbar accessories support?
- What materials and insulation are used?
- What standard lengths and cross-sections are available?
- How are these mounted or assembled?
- What environmental ratings apply?
Rated up to 640 A continuous; individual part numbers list exact ampacities in the Wohner catalog.
Conductors are high–purity electrolytic copper; covers are UV–stabilized PVC rated to 105 °C.
Busbars come in 2 m lengths with cross–sections from 3×9×0.8 mm to 10×20×1 mm; profile terminals span 500–1260 mm².
Snap–on covers and slide–in terminals enable tool–free assembly; brackets included per Wohner instructions.
IP20 protection; –40 °C to +105 °C operation; RoHS–compliant.
