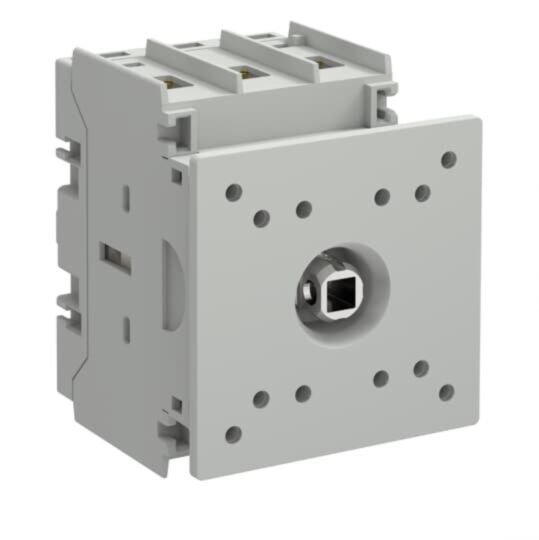

1SCA162567R1001 ABB OT63G2-3DS OT Plus 3 Pole 63A Door Mounted Switch Disconnector
MPN: 1SCA162567R1001
Alt. SKU: OT63G2-3DS
Special Price
£37.64
£31.37
Regular Price
£57.91
Why Choose the 1SCA162567R1001
The ABB 1SCA162567R1001 is a 3 pole switch disconnector from the OT Plus range, designed for rated currents up to 63 A and operating voltages up to 800 V.
It provides a short-circuit rating of 50 kA and a short-time withstand of 1.5 kA, suitable for isolating and switching applications in industrial systems.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162567R1001
- Manufacturer part number: 1SCA162567R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 3 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 63 A
- Rated permanent current at AC-21, 400 V: 63 A
- Rated permanent current at AC-23, 400 V: 63 A
- Rated short-time withstand current lcw: 1.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 30 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 30 kW
Downloads
- Datasheet for 1SCA162567R1001
- Installation instructions for 1SCA162567R1001
- Enviromental product declaration for 1SCA162567R1001
- EU Declaration of Conformity for 1SCA162567R1001
- REACh declaration for 1SCA162567R1001
Trusted By Customers Worldwide
"Switching power of up to 30 kW at 400 V AC enables reliable isolation in demanding installations." Engineering note
Frequently Asked Questions
What is the maximum rated operating voltage for this switch disconnector?
The maximum rated operating voltage is 800 V AC.
How many poles does the ABB 1SCA162567R1001 provide?
This switch disconnector has 3 poles.
What is the rated permanent current at 400 V AC-23 and AC-21 applications?
It is rated at 63 A for both AC-23 and AC-21 at 400 V AC.
What is the conditioned rated short-circuit current for this device?
The conditioned rated short-circuit current is 50 kA.
| Alternative Product SKU | OT63G2-3DS |
|---|---|
| Manufacturer Part Number | 1SCA162567R1001 |
| Manufacturer | ABB |
| Barcode | 6417019926025 |
| Number of Poles | 3 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 30kW |
| Rated permanent current at AC-21, 400 V | 63A |
| Switching power at 400 V | 30kW |
| Rated permanent current at AC-23, 400 V | 63A |
| Max. rated operation voltage Ue AC | 800V |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 63A |
| Amperage | 63A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 81mm |
| Width | 64mm |
| Depth | 70mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
