LBAS416TPSN Safety switch
MPN: 2CMA142431R1000
Alt. SKU: LBAS416TPSN
Special Price
£145.16
£120.97
Regular Price
£223.32
Why Choose the LBAS416TPSN [2CMA142431R1000]
Safety switch, 4-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and entries for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a switchable neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 4-pole safety switch with 1NO auxiliary contact (side-operated handle, interlocked cover).
- Voltage Rating: Rated operational voltage up to 690 V AC.
- Current Ratings: AC-23A: 16 A at 380-415 V; 10 A at 690 V.
- Power Rating: 7.5 kW at 380-690 V AC.
- Insulation & Impulse Ratings: Rated insulation voltage 690 V; impulse withstand voltage 8 kV.
- Protection Rating: IP65 enclosure, suitable for indoor and outdoor use.
- Terminal Type & Size: Screw clamp terminals for 0.75 to 10 mm² conductors, including PE and switchable neutral terminals.
- Mechanical Durability: Aluminium enclosure with IK09 impact resistance and UV-protected paint.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the voltage and current rating of the safety switch?
The safety switch has a rated operational voltage of up to 690 V AC and a current rating of 16 A at 380-415 V, and 10 A at 690 V.
What is the power rating of this safety switch?
The power rating is 7.5 kW at 380-690 V AC.
What type of enclosure does the switch have?
The switch features an aluminium enclosure with IP65 protection, making it suitable for both indoor and outdoor use.
What is the cable capacity for this safety switch?
The terminals accommodate conductors from 0.75 to 10 mm², including PE and switchable neutral terminals.
Is the switch suitable for a 5 wire system?
Yes, the switch is designed for a 5 wire system and includes a switchable neutral terminal and PE terminal.
Can the handle be locked?
Yes, the handle is padlockable and designed for one padlock.
What are the mechanical durability ratings for the enclosure?
The enclosure has IK09 impact resistance and is coated with UV-protected paint.
| Manufacturer Part Number | 2CMA142431R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | LBAS416TPSN |
| Barcode | 7392696424318 |

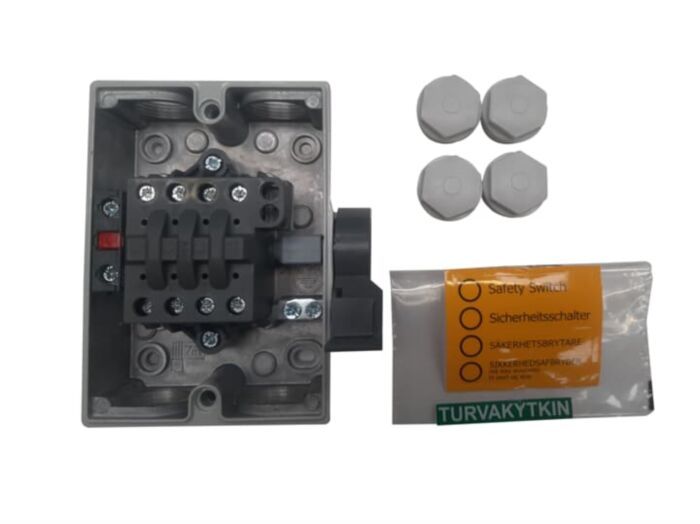

| Product Image | For Illustration Purposes Only |
