KSE463TPSN Enclosed Switch Disconnector
MPN: 2CMA144582R1000
Alt. SKU: KSE463TPSN
Special Price
£295.70
£246.42
Regular Price
£454.92
Why Choose the KSE463TPSN [2CMA144582R1000]
Encl. Switch Disconnector, 4-p. 415V AC23 45A, 22kW. Aluminium enclosure. IP65. Black Round handle. Interlocked cover. The dye casted aluminum alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with grommet type of glands included (IP54). The cover is interlocked, and handle padlockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. PE terminals included.
Technical Specification
- Function: 4-pole switch disconnector, AC-23A, 415 V, 45 A, 22 kW.
- Rated Operational Voltage: 750 V main circuit.
- Rated Operational Current: 63 A (AC-22A), 45 A (AC-23A) at 380–415 V.
- Rated Insulation Voltage: 750 V (IEC/EN 60664-1).
- Short-Circuit Current Rating: 13 kA conditional, 1.4 kA making capacity at 690 V AC.
- Enclosure: Die-cast aluminium alloy (silumin), IP65, IK08 impact resistance.
- Terminal Type & Size: Screw clamp with PE terminal, cable size 1.5–35 mm².
- Mechanical Durability: 20,000 operations.
- Protection Features: Interlocked cover with padlock facility.
- Cable Entry: Top and bottom with M40 and M16 gland outlets.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current for this switch disconnector?
The rated operational current is 45 A for AC-23A at 380–415 V.
What type of enclosure does this product have?
The enclosure is made of die-cast aluminium alloy (silumin) and has an IP65 rating.
What is the maximum cable size that can be used with this switch disconnector?
The maximum cable size is 35 mm².
Can the handle be padlocked in the 'On' position?
Yes, the handle can be padlocked in the 'On' position by removing two small plastic bits.
What is the short-circuit current rating of this product?
The short-circuit current rating is 13 kA conditional, with a making capacity of 1.4 kA at 690 V AC.
What is the mechanical durability of the switch disconnector?
The mechanical durability is rated for 20,000 operations.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA144582R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 230mm |
| Width | 160mm |
| Depth | 118mm |
| Amperage | 45A |
| Degree of protection (IP) | IP65 |
| KW Rating | 22kW |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | KSE463TPSN |
| Barcode | 7392696445825 |

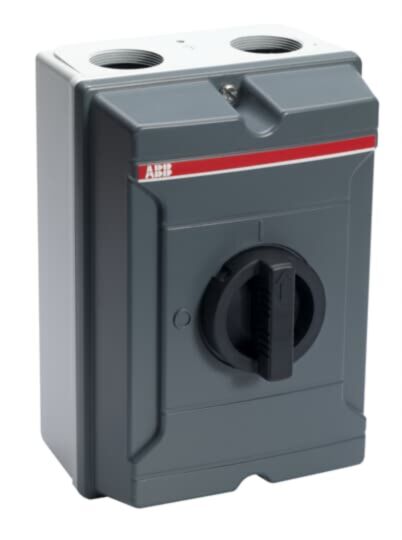

| Product Image | For Illustration Purposes Only |
