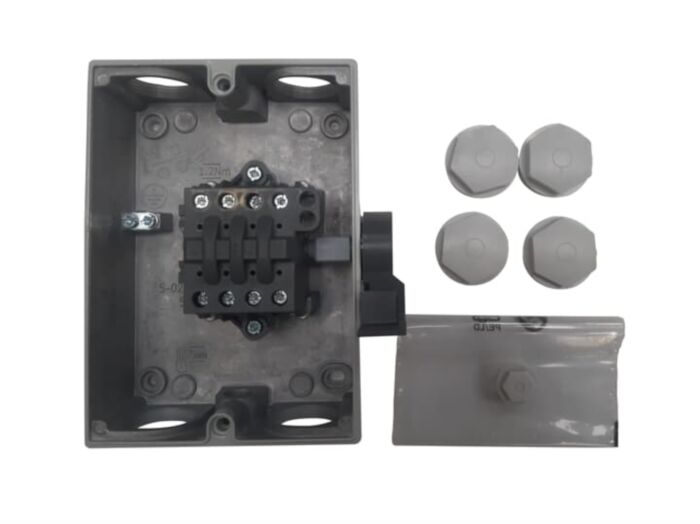

KSE440TPSN Enclosed Switch Disconnector
MPN: 2CMA142416R1000
Alt. SKU: KSE440TPSN
Special Price
£139.03
£115.86
Regular Price
£213.90
Why Choose the KSE440TPSN [2CMA142416R1000]
Encl. Switch Disconnector, 4-p. 415V AC23 25A, 11kW. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a switchable neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: Enclosed switch disconnector, 4-pole, side-operated handle with interlocked cover.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current AC-23A: 25 A at 380–415 V, 25 A at 500 V, 16 A at 690 V.
- Rated Operational Power AC-23A: 11 kW at 380–415 V, 15 kW at 500 V, 11 kW at 690 V.
- Insulation Voltage (Ui): 690 V (IEC/EN 60664-1).
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65 (enclosure protected against low pressure water jets).
- Terminal Type and Size: Screw clamp, 0.75 to 10 mm² for main and PE terminals.
- Mechanical Durability: Aluminium enclosure with IK09 impact resistance, UV protected paint, padlockable grey side handle.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 25 A at 380–415 V and 500 V, and 16 A at 690 V.
What is the degree of protection for this enclosure?
The enclosure has a degree of protection of IP65, making it suitable for outdoor and indoor use.
What type of terminals does the switch disconnector have?
The switch has screw clamp terminals suitable for cable sizes from 0.75 to 10 mm² for main and PE terminals.
Can the handle be locked?
Yes, the handle is padlockable and designed for use with one padlock.
What is the maximum rated operational power of the switch?
The maximum rated operational power is 11 kW at 380–415 V and 15 kW at 500 V.
Is the switch suitable for a 5 wire system?
Yes, the switch is designed for a 5 wire system and includes a switchable neutral terminal and PE terminal.
What materials are used in the enclosure?
The enclosure is made of rigid silumin and features UV protected paint.
| Manufacturer Part Number | 2CMA142416R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 168mm |
| Width | 138mm |
| Depth | 68mm |
| Amperage | 25A |
| Degree of protection (IP) | IP65 |
| KW Rating | 11kW |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | KSE440TPSN |
| Barcode | 7392696424165 |
