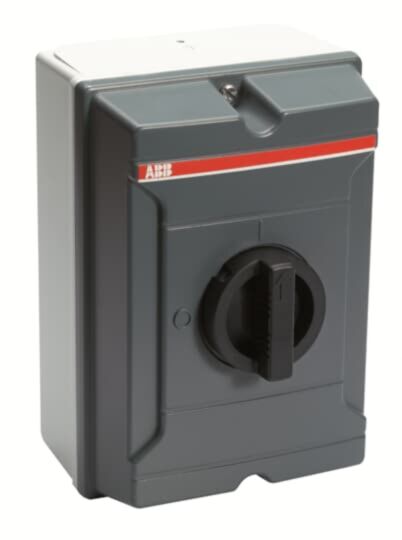

KSE363D/TPN Enclosed Switch Disconnector
MPN: 2CMA144581R1000
Alt. SKU: KSE363D/TPN
Special Price
£267.58
£222.98
Regular Price
£411.65
Why Choose the KSE363D/TPN [2CMA144581R1000]
Encl. Switch Disconnector, 3-p. 415V AC23 45A, 22kW. Aluminium enclosure. IP65. Black Round handle. Interlocked cover. The dye casted aluminum alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the grommet type of glands included (IP54). The cover is interlocked, and handle padlockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. N and PE terminals included.
Technical Specification
- Function: 3-pole switch disconnector for AC-23A applications.
- Rated Operational Voltage: 750 V AC main circuit.
- Rated Operational Current: 45 A at 380-415 V, 45 A at 500 V, 20 A at 690 V (AC-23A).
- Rated Power: 22 kW at 380-415 V, 22 kW at 500 V, 15 kW at 690 V (AC-23A).
- Contact Configuration: 3 poles, no auxiliary contacts fitted by default.
- Insulation Voltage: 750 V (IEC/EN 60664-1).
- Impulse Withstand Voltage: Suitable for pollution degree 3 environments.
- Enclosure Protection: IP65 watertight aluminium enclosure, IK08 impact resistance.
- Terminal Type and Size: Screw clamp terminals for 1.5 to 35 mm² conductors, including PE terminal 6 to 35 mm².
- Mechanical Durability: Rated for 20,000 operating cycles.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 45 A at 380-415 V, 45 A at 500 V, and 20 A at 690 V (AC-23A).
What is the maximum power rating for this device?
The maximum power rating is 22 kW at 380-415 V and 500 V, and 15 kW at 690 V (AC-23A).
What type of enclosure does the switch disconnector have?
The switch disconnector features an IP65 watertight aluminium enclosure with IK08 impact resistance.
What is the cable capacity for the terminals?
The screw clamp terminals can accommodate conductors from 1.5 to 35 mm², with the PE terminal supporting 6 to 35 mm².
Can the handle be padlocked?
Yes, the handle is padlockable in both the off and on positions using two padlocks.
Is there any information on conformity and standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA144581R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 230mm |
| Width | 160mm |
| Depth | 118mm |
| Amperage | 45A |
| Degree of protection (IP) | IP65 |
| KW Rating | 22kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | KSE363D/TPN |
| Barcode | 7392696445818 |
