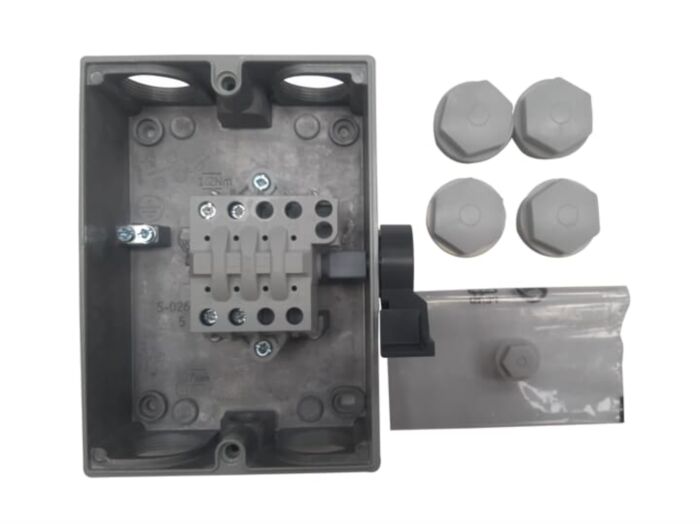

KSE240DP Enclosed Switch Disconnector
MPN: 2CMA142414R1000
Alt. SKU: KSE240DP
Special Price
£72.84
£60.70
Regular Price
£112.06
Why Choose the KSE240DP [2CMA142414R1000]
Encl. Switch Disconnector, 2-p. 230V AC23 32A, 4.4kW. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have cable entries for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 4 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 2-pole enclosed switch disconnector, side-operated handle with interlocked cover.
- Rated Operational Voltage: 690 V AC main circuit.
- Rated Operational Current: 32 A (AC-23A, 230 V), 40 A (AC-22A, 230 V single phase).
- Rated Power: 4.4 kW (AC-23A, 230 V single phase).
- Insulation and Impulse Ratings: Rated insulation voltage 690 V (IEC/EN 60664-1), rated impulse withstand voltage 8 kV.
- Degree of Protection: IP65, suitable for indoor and outdoor use.
- Terminal Type and Capacity: Screw clamp terminals, 0.75 to 10 mm² cable cross-section, including PE terminal.
- Enclosure Material and Durability: Aluminium with UV-protected paint, impact resistance rating IK09.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 32 A for AC-23A at 230 V and 40 A for AC-22A at 230 V single phase.
What is the degree of protection for this product?
The product has a degree of protection of IP65, making it suitable for both indoor and outdoor use.
What is the cable capacity for the terminals?
The screw clamp terminals can accommodate cable cross-sections from 0.75 to 10 mm², including the PE terminal.
Can the handle be locked?
Yes, the handle is padlockable and designed for use with one padlock.
What materials are used in the enclosure?
The enclosure is made of rigid silumin with UV-protected paint, providing durability and impact resistance rated IK09.
Is the switch suitable for a 4-wire system?
Yes, the switch is designed for a 4-wire system and includes a fixed neutral terminal and PE terminal.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142414R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 168mm |
| Width | 138mm |
| Depth | 68mm |
| Amperage | 32A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 2 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | KSE240DP |
| Barcode | 7392696424141 |
