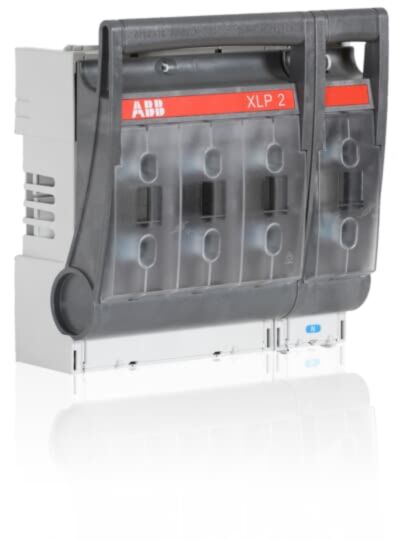

XLP2-4P-8BC Fuse Switch Disconnector
MPN: 1SEP600124R0002
Alt. SKU: XLP2-4P-8BC
Special Price
£823.50
£686.25
Regular Price
£1,266.92
Why Choose the XLP2-4P-8BC [1SEP600124R0002]
The XLP 2.4-pole connector is rated for 400A and includes eight bridge clamps for secure and reliable conductor connections. Designed for robust electrical installations, this component ensures consistent performance under demanding conditions. Its compatibility with standard busbar systems and ease of installation make it ideal for use in industrial and commercial switchgear applications.
Technical Specification
- Function: Fuse switch disconnector.
- Number of Poles: 4P (4-pole configuration).
- Rated Current: 400 A.
- Rated Voltage: 500 V AC.
- Rated Conditional Short-Circuit Current: 50 kA (690 V).
- Impulse Withstand Voltage: 8 kV.
- Degree of Protection: IP30.
- Terminal Type: Cable clamp.
- Mounting Type: Baseplate.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the XLP2?
The XLP2 functions as a fuse switch disconnector.
What is the rated current of the XLP2?
The rated current is 400 A.
What is the degree of protection for the XLP2?
The degree of protection is IP30.
How is the XLP2 mounted?
The XLP2 is mounted using a baseplate.
What is the rated voltage for the XLP2?
The rated voltage is 500 V AC.
What type of terminal does the XLP2 use?
The XLP2 uses cable clamp terminals.
What are the short-circuit current ratings for the XLP2?
The rated conditional short-circuit current is 50 kA at 690 V.
| Manufacturer Part Number | 1SEP600124R0002 |
|---|---|
| Packed Quantity | 1 |
| Height | 129mm |
| Width | 290mm |
| Depth | 289mm |
| HS Code | 85369095 |
| Amperage | 400A |
| Country of Manufacture | China |
| Manufacturer | ABB |
| Alternative Product SKU | XLP2-4P-8BC |
| Barcode | 7025840086710 |
