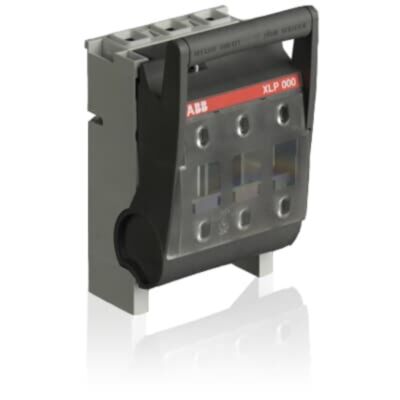

XLP000-6CC Fuse Switch Disconnector

Why Choose the ABB XLP000-6CC Fuse Switch Disconnector?

The ABB XLP000-6CC (1SEP201428R0001) is a compact 3-pole fuse switch disconnector from the ABB EasyLine XLP range, designed to provide safe switching, reliable isolation and effective circuit protection for low-voltage electrical installations. Designed for NH000 and NH00C DIN fuse links, it offers a 100 A rated current and is supplied complete with 6 cage clamp terminals for fast, secure cable termination.

Its compact base-mounted design makes it ideal for distribution boards, control panels, OEM equipment and machinery where installation space is limited. The front-operated switching mechanism enables safe manual isolation while allowing quick fuse replacement during maintenance.

Suitable for operation up to 690 V AC, the XLP000-6CC provides dependable overload and short-circuit protection when used with the correct NH fuse links, making it an excellent solution for industrial and commercial power distribution applications.

Key Advantages

• Compact 3-pole fuse switch disconnector.
• 100 A rated current.
• Designed for NH000 and NH00C DIN fuse links.
• Supplied complete with 6 cage clamp terminals.
• Suitable for operation up to 690 V AC.
• Compact footprint for panel builders and OEM equipment.
• Reliable ABB EasyLine construction for long service life.

Key Features

• ABB EasyLine XLP series.
• Model: XLP000-6CC.
• Manufacturer Part Number: 1SEP201428R0001.
• 3-pole configuration.
• 100 A rated current.
• NH000 / NH00C fuse compatibility.
• Includes 6 cage clamp terminals.
• Baseplate mounting.
• Front-operated switching mechanism.

Technical Specifications

• Manufacturer: ABB
• Series: EasyLine XLP
• Model: XLP000-6CC
• Manufacturer Part Number: 1SEP201428R0001
• Product type: Fuse switch disconnector
• Number of poles: 3
• Rated current: 100 A
• Fuse sizes: NH000 / NH00C
• Fuse system: DIN NH
• Rated operational voltage: 400 / 500 / 690 V AC
• Rated operational current (AC-21B): 50 A at 690 V
• Rated operational current (AC-22B): 100 A at 500 V
• Rated operational current (AC-23B): 80 A
• Rated impulse withstand voltage (Uimp): 6 kV
• Conditional short-circuit current: 50 kA RMS at 690 V
• Protection rating: IP30
• Mounting type: Baseplate
• Terminal type: 6 cage clamp terminals included
• Applicable standard: IEC 60947-3
• Weight: Approx. 0.40 kg
• EAN: 7025840013372

Compact Fused Isolation for Low-Voltage Systems

The ABB XLP000-6CC combines manual switching and dependable circuit isolation with the proven protection of NH fuse links. When fitted with correctly rated fuse links, it provides reliable protection against overloads and short circuits while enabling circuits to be safely isolated during maintenance.

Its compact size and integrated cage clamp terminals make it particularly suitable for OEM machinery, industrial control panels and commercial distribution systems where space-saving installation and dependable performance are essential.

Typical Applications

• Industrial control panels.
• OEM machinery.
• Commercial distribution boards.
• Motor control circuits.
• Low-voltage switchboards.
• Power distribution equipment.

Trusted by Electrical Professionals Worldwide

ABB EasyLine XLP fuse switch disconnectors are trusted by electrical engineers, panel builders and maintenance professionals for dependable fused isolation, compact installation and reliable performance in demanding low-voltage power distribution applications.
