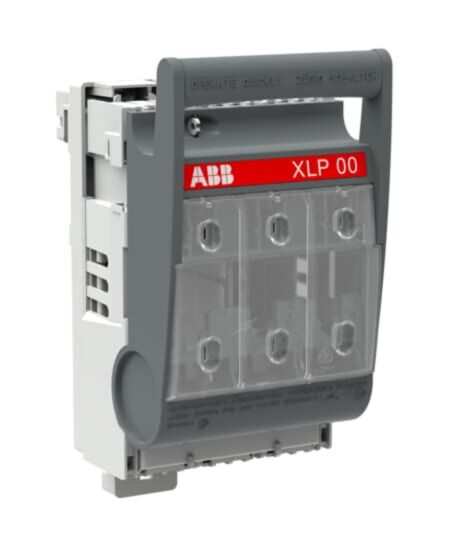

XLP00-A60/60-A-3BC-above Fuse Switch Disconnector

Why Choose the ABB XLP00-A60/60-A-3BC-Above Fuse Switch Disconnector?

The ABB XLP00-A60/60-A-3BC-Above (1SEP101917R0001) is a compact 3-pole fuse switch disconnector engineered for safe switching, dependable isolation and overcurrent protection in industrial and commercial low-voltage power distribution systems. Part of the ABB EasyLine XLP range, this model is rated at 160 A and is designed for use with NH00 and NH000 DIN fuse links.

Supplied complete with an A60/60 adaptor for direct installation on a 60 mm busbar system and three bridge clamps, this version features an above cable connection, making it ideal for switchboard layouts where conductors enter from the top of the assembly.

Designed for operation up to 1000 V AC, with an 8 kV impulse withstand voltage and a 50 kA conditional short-circuit rating at 690 V, the ABB XLP00-A60/60-A-3BC-Above delivers reliable fused isolation for OEM machinery, industrial switchboards and commercial distribution systems.

Key Advantages

• Compact 3-pole fuse switch disconnector.
• 160 A rated current for low-voltage distribution systems.
• Compatible with NH00 and NH000 DIN fuse links.
• Includes an A60/60 adaptor for 60 mm busbar mounting.
• Supplied complete with three bridge clamps.
• Above cable entry supports organised panel wiring.
• Front-operated mechanism for safe switching and maintenance.
• Reliable ABB EasyLine construction for long service life.

Key Features

• ABB EasyLine XLP00 series.
• Model: XLP00-A60/60-A-3BC-Above.
• Manufacturer Part Number: 1SEP101917R0001.
• 3-pole configuration.
• 160 A rated current.
• NH00 and NH000 fuse compatibility.
• A60/60 busbar adaptor included.
• Three bridge-clamp terminals included.
• Cable connection above the unit.
• Suitable for 60 mm busbar systems.

Technical Specifications

• Manufacturer: ABB
• Series: EasyLine XLP
• Model: XLP00-A60/60-A-3BC-Above
• Manufacturer Part Number: 1SEP101917R0001
• Product type: Fuse switch disconnector
• Number of poles: 3
• Rated current: 160 A
• Fuse sizes: NH00 and NH000
• Fuse system: DIN NH
• Rated operational voltage: 400 / 500 / 690 / 800 / 1000 V AC
• Rated operational current (AC-21B): 125 A at 690 V
• Rated operational current (AC-22B): 160 A at 500 V, 63 A at 800 V and 125 A at 1000 V
• Rated operational current (AC-23B): 125 A at 400 V
• Rated frequency: 50 / 60 Hz
• Rated impulse withstand voltage: 8 kV
• Conditional short-circuit current: 50 kA RMS at 690 V
• Degree of protection: IP30
• Mounting type: 60 mm busbar system
• Busbar adaptor: A60/60 included
• Terminal type: Three bridge clamps included
• Cable direction: Above
• Electronic fuse monitoring: Not included
• Dimensions (W × H × D): 105 × 206 × 126 mm
• Net weight: Approx. 0.95 kg
• EAN: 7025840015642

Reliable Busbar-Mounted Fused Isolation

The ABB XLP00-A60/60-A-3BC-Above combines safe manual isolation with the proven protection offered by NH fuse links. Installed on a 60 mm busbar system, it provides dependable switching and isolation while protecting downstream circuits against overloads and short circuits when fitted with the appropriate fuse links.

Its factory-fitted A60/60 adaptor and bridge-clamp terminals simplify installation while the above-entry cable arrangement provides flexibility when designing compact switchboard layouts for industrial and commercial applications.

Typical Applications

• Industrial switchboards.
• Commercial distribution panels.
• Motor control centres.
• OEM machinery and equipment.
• Power distribution systems.
• 60 mm busbar-mounted feeder circuits.

Trusted by Electrical Professionals Worldwide

ABB EasyLine XLP fuse switch disconnectors are trusted by electrical engineers, panel builders and industrial maintenance teams for dependable fused isolation, straightforward installation and reliable performance in demanding low-voltage power distribution systems.
