OTL16A3M Safety switch
MPN: 1SCA022612R8750
Alt. SKU: OTL16A3M
Special Price
£178.93
£149.11
Regular Price
£275.28
Why Choose the OTL16A3M [1SCA022612R8750]

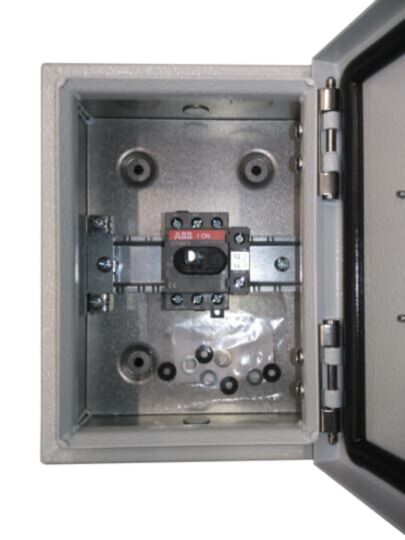

This 3-pole safety switch is rated for 415V AC23, 16A, and 7.5kW applications. It features a mounted auxiliary contact with 1 normally open and 1 normally closed contact. The enclosure is constructed from rigid alu-zinc coated steel with a durable polyester powder coating, providing IP65 protection for reliable outdoor use. The hinged steel door includes a lock and a red-yellow selector handle. The cover is interlocked to prevent opening while the switch is on, with a defeatable interlock function to allow thermographic inspection. Cable entries are knock-out type, and a PE terminal is included for grounding. The enclosure complies with UL746C standards for UV resistance, water exposure, and immersion, ensuring robust performance in demanding environments.
Technical Specification
- Function: 3-pole safety switch with mounted auxiliary contact (1 NO, 0 NC).
- Rated Operational Current AC-23A: 16 A at 380–415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power AC-23A: 7.5 kW at 380–690 V.
- Insulation Voltage: 750 V (IEC/EN 60664-1).
- Short-Circuit Making Capacity: 0.705 kA at 690 V AC.
- Degree of Protection: IP65 (IEC 60529).
- Enclosure Material: Steel sheet with alu-zinc coating and polyester powder coating.
- Terminals: Screw clamp for 0.75 to 10 mm² (main circuit) and PE terminals for 1.5 to 25 mm².
- Cable Entry: Knock-out type entries at top and bottom.
- Mechanical Features: Red/yellow selector handle, interlocked cover with defeatable interlock, IK09 impact resistance.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the safety switch?
The rated operational current is 16 A at 380–415 V, 16 A at 500 V, and 10 A at 690 V.
What is the degree of protection for this safety switch?
The safety switch has a degree of protection of IP65, suitable for outdoor use.
What type of enclosure does this product have?
The enclosure is made of steel sheet with alu-zinc coating and polyester powder coating.
What is the cable capacity for the main circuit terminals?
The main circuit terminals can accommodate cable sizes from 0.75 to 10 mm².
Can the interlock function be defeated?
Yes, the interlock function can be defeated for thermographing purposes.
What is the short-circuit making capacity of the switch?
The short-circuit making capacity is 0.705 kA at 690 V AC.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA022612R8750 |
|---|---|
| Packed Quantity | 1 |
| Height | 200mm |
| Width | 150mm |
| Depth | 100mm |
| HS Code | 85371010 |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Country of Manufacture | Bulgaria |
| Manufacturer | ABB |
| Alternative Product SKU | OTL16A3M |
| Barcode | 6417019199313 |
