BWS616YTPN Safety switch
MPN: 2CMA142425R1000
Alt. SKU: BWS616YTPN
£81.71
£68.09
Why Choose the BWS616YTPN [2CMA142425R1000]
Safety switch, 6-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. RedYellow Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure for 6 pole switches is available in different colors, grey and yellow. The cable entries are of none threaded knock out types with holes for 2 parallell cables, both from top and bottom. Membrane grommets and locking nuts are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch includes neutral and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 6-pole safety switch with side-operated red handle and interlocked cover.
- Rated Operational Voltage: Up to 690 V AC main circuit.
- Rated Current AC-23A: 16 A at 380-415 V, 16 A at 500 V, 10 A at 690 V.
- Rated Operational Power AC-23A: 7.5 kW at 380-690 V.
- Contact Configuration: 1 normally open (NO) auxiliary contact, no normally closed (NC) contacts.
- Insulation Voltage (Ui): 690 V according to IEC/EN 60664-1.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65 enclosure, suitable for indoor and outdoor use.
- Terminal Type and Size: Screw clamp terminals, 0.75 to 10 mm², including PE and fixed neutral terminals.
- Mechanical Durability: Impact resistance IK08, padlockable handle for one padlock.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the safety switch?
The rated operational voltage is up to 690 V AC for the main circuit.
What is the maximum rated current for this switch?
The maximum rated current is 16 A at 380-415 V and 10 A at 690 V.
What is the degree of protection for the enclosure?
The enclosure has a degree of protection rated at IP65, suitable for both indoor and outdoor use.
What type of terminals does the switch have?
The switch features screw clamp terminals accommodating cable sizes from 0.75 to 10 mm², including PE and fixed neutral terminals.
Can the handle be locked?
Yes, the handle is padlockable and designed for use with one padlock.
What is the mechanical durability rating of the switch?
The switch has an impact resistance rating of IK08.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142425R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 190mm |
| Depth | 65mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 6 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS616YTPN |
| Barcode | 7392696424257 |

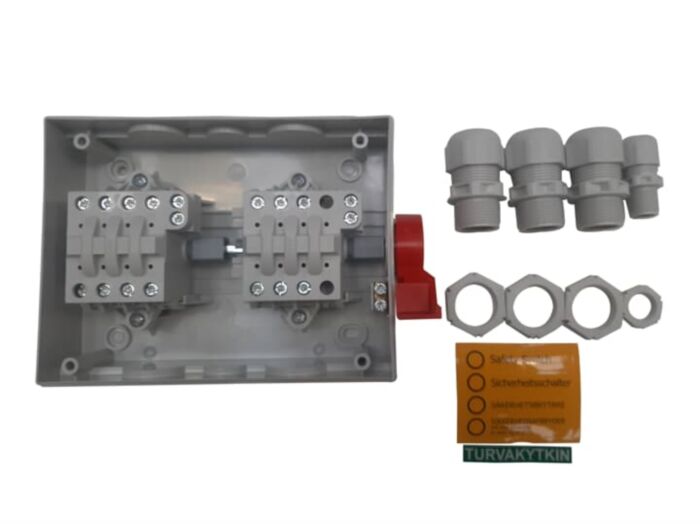

| Product Image | For Illustration Purposes Only |
