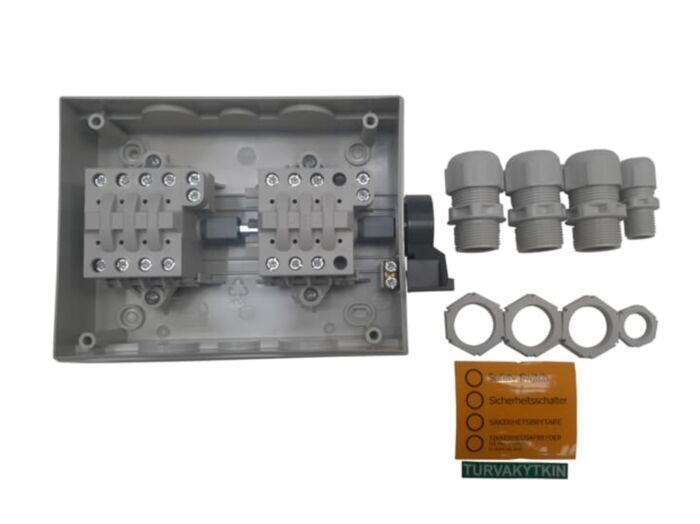

BWS616TPN Safety switch
MPN: 2CMA142419R1000
Alt. SKU: BWS616TPN
Special Price
£95.77
£79.81
Regular Price
£147.34
Why Choose the BWS616TPN [2CMA142419R1000]
Safety switch, 6-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure for 6 pole switches is available in different colors, grey and yellow. The cable entries are of none threaded knock out types with holes for 2 parallell cables, both from top and bottom. Membrane grommets and locking nuts are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch includes neutral and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 6-pole side-operated safety switch with 1 normally open auxiliary contact.
- Rated Operational Voltage: Up to 690 V AC.
- Current Ratings: AC-23A: 16 A at 415 V, 10 A at 690 V.
- Rated Operational Power: 7.5 kW at 380-690 V.
- Insulation Voltage: 690 V (IEC/EN 60664-1).
- Impulse Withstand Voltage: 8 kV.
- Degree of Protection: IP65 (indoor/outdoor use).
- Terminal Type and Size: Screw clamp terminals, 0.75 to 10 mm².
- Mechanical Durability: Polycarbonate enclosure, impact resistant IK08, UV protected.
- Additional Features: Padlockable grey handle, interlocked cover, fixed neutral and PE terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the safety switch?
The safety switch has a rated operational voltage of up to 690 V AC.
What is the current rating for the switch at 415 V?
The current rating is 16 A at 415 V.
Can this switch be used outdoors?
Yes, the switch is suitable for both indoor and outdoor use with an IP65 rating.
What is the cable capacity for the terminals?
The terminals can accommodate cable sizes from 0.75 to 10 mm².
Is the handle of the switch padlockable?
Yes, the handle is padlockable and designed for one padlock.
What type of auxiliary contact is included?
The switch includes one normally open auxiliary contact (1NO0NC).
What materials are used for the enclosure?
The enclosure is made of rigid polycarbonate, which is impact resistant and UV protected.
| Manufacturer Part Number | 2CMA142419R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 190mm |
| Depth | 65mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 6 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BWS616TPN |
| Barcode | 7392696424196 |
