BW640TPN Enclosed Switch Disconnector
MPN: 2CMA142410R1000
Alt. SKU: BW640TPN
£137.36
£114.47
Why Choose the BW640TPN [2CMA142410R1000]
Encl. Switch Disconnector, 6-p. 415V AC23 25A, 11kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure for 6 pole switches is available in different colors, grey and yellow. The cable entries are of none threaded knock out types with holes for 2 parallell cables, both from top and bottom. Membrane grommets and locking nuts are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch includes neutral and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 6-pole enclosed switch disconnector, side-operated handle with interlocked cover.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current (AC-23A): 25 A at 415 V, 16 A at 690 V.
- Rated Operational Power (AC-23A): 11 kW at 415 V, 11 kW at 690 V.
- Insulation Voltage (U i ): 690 V IEC/EN 60664-1.
- Impulse Withstand Voltage (U imp ): 8 kV.
- Degree of Protection: IP65 enclosure, suitable for indoor and outdoor use.
- Terminal Type and Size Range: Screw clamp terminals, 0.75 to 10 mm² for main conductors and PE.
- Enclosure Material: UV-protected rigid polycarbonate, impact resistant IK08.
- Mechanical Features: Padlockable side handle, interlocked cover, fixed neutral terminal included.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 25 A at 415 V and 16 A at 690 V.
What is the degree of protection for this enclosure?
The enclosure has an IP65 rating, making it suitable for both indoor and outdoor use.
What type of terminals does the switch disconnector use?
The switch features screw clamp terminals with a size range of 0.75 to 10 mm² for main conductors and PE.
Can the handle be locked?
Yes, the handle is padlockable and designed for use with one padlock.
What is the insulation voltage of the switch disconnector?
The insulation voltage is rated at 690 V according to IEC/EN 60664-1.
What materials are used for the enclosure?
The enclosure is made of UV-protected rigid polycarbonate, which is impact resistant (IK08).
What is the maximum rated operational power?
The maximum rated operational power is 11 kW at both 415 V and 690 V.
| Manufacturer Part Number | 2CMA142410R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 190mm |
| Depth | 65mm |
| Amperage | 25A |
| Degree of protection (IP) | IP65 |
| KW Rating | 11kW |
| Number of Poles | 6 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | BW640TPN |
| Barcode | 7392696424103 |

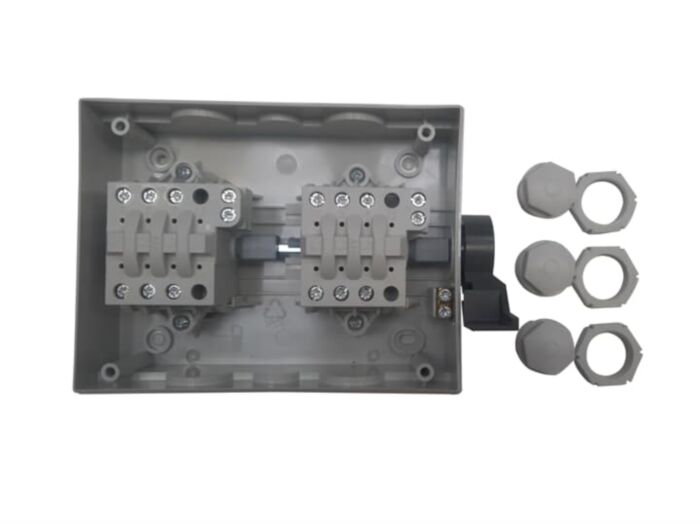

| Product Image | For Illustration Purposes Only |
