GAZM080ET6 - 3P 80A CHANGEOVER METAL ENCLOSED SWITCH

Why Choose the GAZM080ET6?

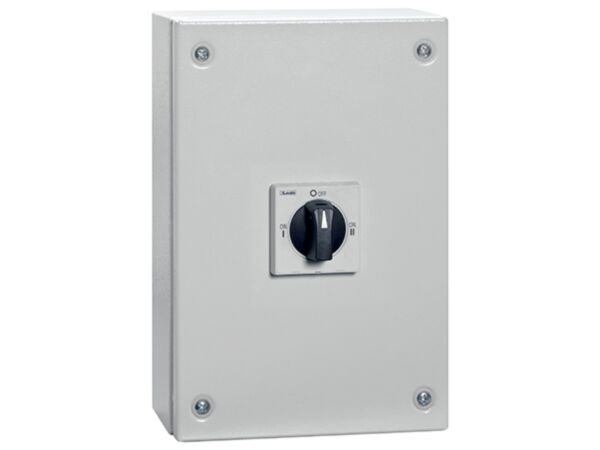

Designed for reliable source selection, the Lovato GAZM080ET6 is a three‑pole I‑0‑II line changeover switch supplied in an IP65 metal enclosure. With Ith 80 A and AC operation, it delivers robust performance for transfer and isolation duties. The enclosure measures 200X300X120MM/7.9X11.8X4.7'', making panel integration straightforward while maintaining ingress protection for demanding industrial and building services environments.

Rated Ui 1000 V and Uimp 8 kV, it carries 80 A in AC21A/AC22A to 690 V, and up to 80 A (400 V), 63 A (500 V) or 47 A (690 V) in AC23A. With 50 kA conditional short-circuit current using gG80 fuses, 30,000-cycle mechanical and electrical life, IP65 protection, and IEC/EN 60947-3 compliance, it suits tough duties. Terminals accept 4–70 mm² conductors; torque 5–6 Nm.

Key Benefits

• IP65 metal enclosure protects against dust and water jets.
• 80 A rating across AC21A/AC22A up to 690 V.
• Robust AC23A performance: 80 A at 400 V, 63 A at 500 V.
• High insulation and impulse withstand: Ui 1000 V, Uimp 8 kV.
• Strong short-circuit performance: 50 kA conditional with gG80 fuse.
• Long service life: 30,000 mechanical and electrical cycles.
• Wide wiring range: 4–70 mm², 5–6 Nm tightening.
• Reliable operation from -25 to +55 °C, pollution degree 3.

Technical Specification

• Product type designation: GAZM
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 80 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 80 A
• Operating current Ie AC21A 500 V: 80 A
• Operating current Ie AC21A 690 V: 80 A
• Operating current Ie AC22A 400 V: 80 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 80 A
• Operating current Ie AC23A 400 V: 80 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 2.6 W
• Rated operational power AC23A 400 V: 45 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG80
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZM080ET6 three-pole line changeover switch in IP65 metal enclosure
• Manufacturer documentation (downloadable)

Applications

• Mains-to-generator source transfer for industrial and commercial loads
• Switching between primary and backup power supplies in control panels
• Isolation and changeover duties in building services and plant rooms
• Power source selection for pumps, HVAC and process equipment
• Maintenance bypass and test changeover in distribution boards

Safety note: Install and commission only by qualified personnel. Observe the stated ratings, use appropriate gG80 fusing, and isolate all power sources before operation or maintenance.
