GAX7300 - EXTENSION 300MM DIRECT/DOOR COUP

Why Choose the GAX7300?

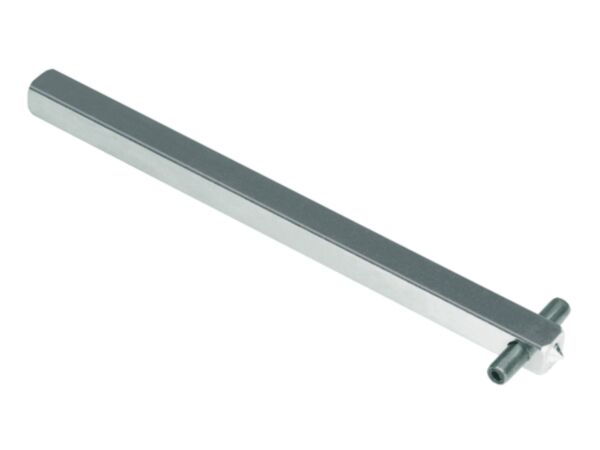

Lovato GAX7300 shaft extension is a robust accessory engineered for precise door‑coupling handle assemblies. Designed for GAX61–GAX64, GAX61B–GAX64B and GAX67B handles, as well as mechanical interlocks GAX5000 and GAX5001 and the GAX6000 coupling system, this 300 mm, 5 mm square shaft ensures reliable alignment between operator and mechanism in industrial enclosures.

Built as a genuine Lovato accessory for GA016A…GA160A… ranges, the GAX7300 helps achieve correct coupling distances without compromise. Conforming to IEC/EN 60947-1 and IEC/EN 60947-3, and recognised under UL508, UL98 and CSA C22.2, it supports consistent, compliant installations when integrated with Lovato door‑coupled hardware across control panels and switch assemblies.

Key Benefits

• Compatible with GAX61–GAX64, GAX61B–GAX64B, and GAX67B door‑coupling handles.
• Suits mechanical interlocks GAX5000 and GAX5001 for secure operation.
• Integrates with the GAX6000 coupling system for reliable linkage.
• 300 mm length provides extended reach in enclosure assemblies.
• 5 mm square (0.2") shaft ensures positive, accurate drive alignment.
• Conforms to IEC/EN 60947, UL508, UL98 and CSA C22.2 standards.
• Genuine Lovato accessory for GA016A…GA160A… device ranges.
• Designed to maintain consistent panel operation and coupling accuracy.

Technical Specification

• Type of product: Accessories
• Type of accessories: Shaft extension
• Accessories for: GA016A…GA160A…

What’s Included

• Lovato GAX7300 shaft extension, 300 mm length, 5 mm square
• Manufacturer packaging and identification

Applications

• Door‑coupling handle assemblies using GAX61–GAX64, GAX61B–GAX64B or GAX67B
• Installations with mechanical interlocks GAX5000 and GAX5001
• Systems using the GAX6000 coupling system for linkage
• Accessory use with GA016A…GA160A… device ranges
• Enclosures requiring a 300 mm, 5 mm square shaft extension

Safety note: Install and adjust only by qualified personnel. Isolate power before work and follow IEC/EN, UL and CSA requirements and the manufacturer’s instructions to ensure safe operation.
